Core Mass Subsystem#

The core mass subsystem is responsible for calculating the mass properties of the aircraft. This includes the empty weight, fuel weight, payload weight, and other mass properties.

Note

This section is under further development.

FLOPS Based Mass Subsystem#

FLOPS used a series of regressions and basic relations to estimate the weight of various transport aircraft components. The equations used are well-documented and freely available[1]. Aviary uses mass instead of weight, which is a subtle but important change to be aware of.

Fuel_Capacity#

The Fuel Capacity Group contains 4 subsystems:

  1. Wing Fuel Capacity

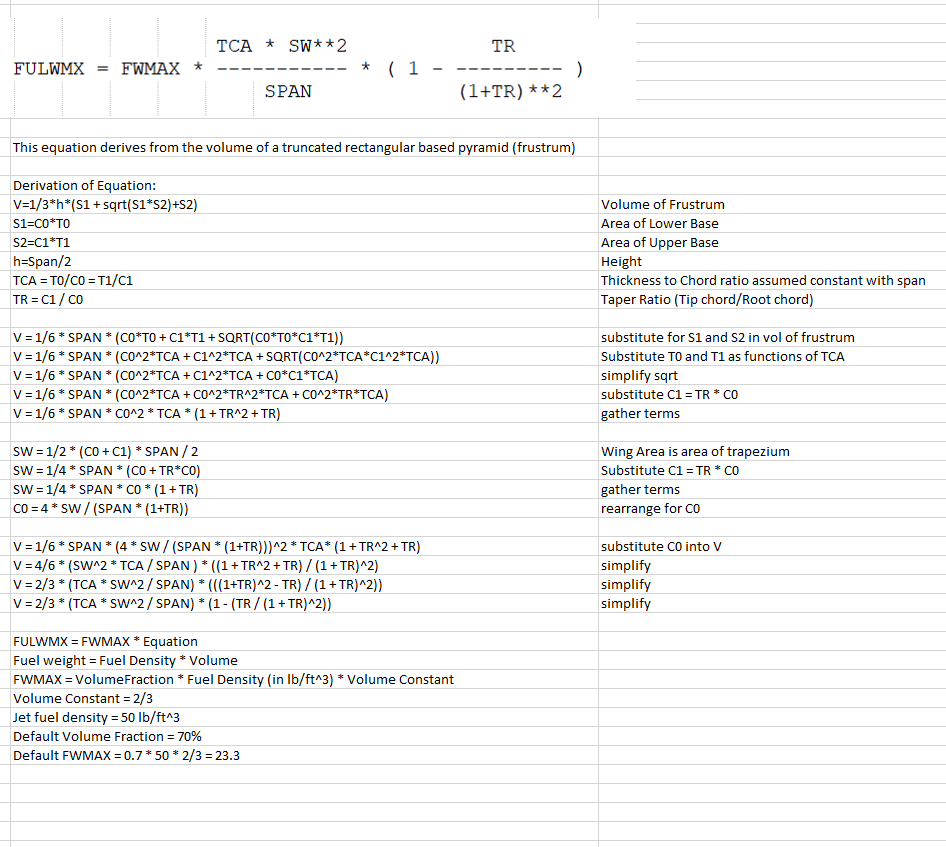

    Aviary assumes that the wing volume can be approximated as a rectangular based pyramid, and that the available volume for fuel is a user specified fraction of this theoretcial volume (Aircraft.Fuel.WING_FUEL_FRACTION). The derivation of Aviary’s theoretical volume calculation is included below:

    wing_fuel_capacity_derivation

    Aviary then converts the volume to a capacity (lbm) using the user specified fuel density (Aircraft.Fuel.DENSITY).

  2. Fuselage Fuel Capacity

    Fusleage Fuel Capacity = Total Fuel Capacity - Wing Fuel Capacity

  3. Auxiliary Fuel capacity

    Auxiliary Fuel Capacity = Total Fuel Capacity - Wing Fuel Capacity - Fuselage Fuel Capacity

  4. Total Fuel Capacity

    Total Fuel Capacity = Wing Fuel Capacity + Fuselage Fuel Capacity + Auxiliary Fuel Capacity

It is possible for Aviary to calculate negative fuel capacities depending on user overrides and the input wing geometry. These situations are not currently flagged to the user.

References#

For additional information, please see the following resources:

GASP Based Mass Subsystem#

Fuel Model#

  • The GASP mass subsystem has a nonlinear solver needed to compute fuel-related variables. In order for it to converge, one must provide good initial guesses for the inputs. Otherwise, it may claim that convergence is reached but gives rise to a strange solution.

  • The computation in the TankCapacity component can not be matched in GASP Fortran code exactly. It is possible that extra_fuel_volume becomes negative. We added code to make sure that it is always positive.

  • Note: The historic name of FUEL_MASS_REQUIRED is INGASP.WFAREQ, but WFAREQ includes fuel margin in GASP while FUEL_MASS_REQUIRED doesn’t. The historic name of TOTAL_FUEL_MASS is INGASP.WFA, but does not include fuel margin in GASP.

  • Note: GASP Fortran code has features that are not implemented in Aviary (e.g. tail boom support, tip tank weight, fuselage acoustic treatment, pylon, acoustic treatment).

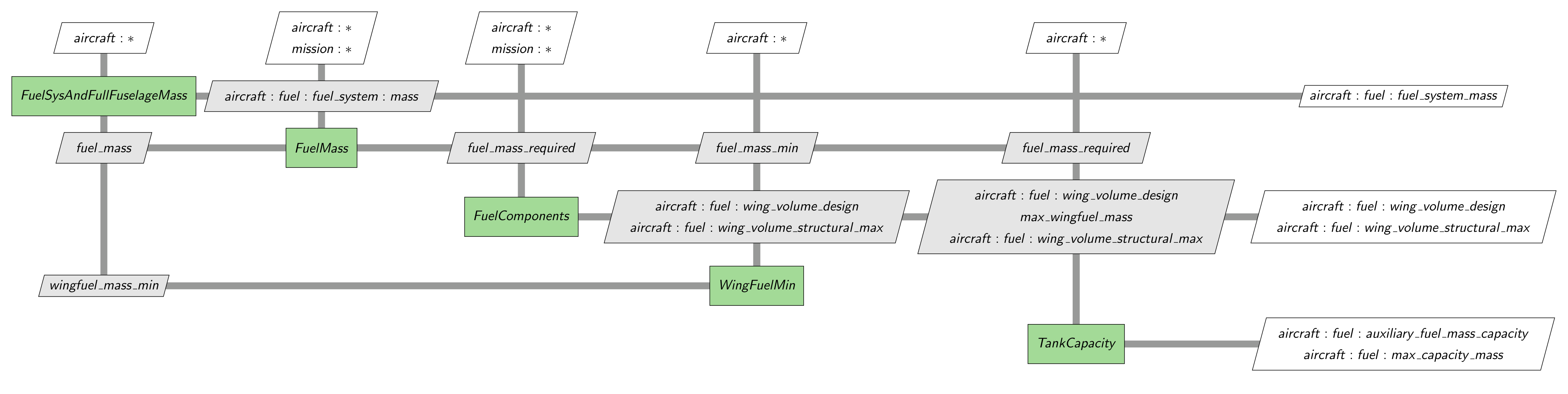

The fuel computation is a nonlinear system of equations. A simplied XDSM diagram is shown below:

GASP based fuel mass computation

A Newton solver is applied until FUEL_MASS, wingfuel_mass_min and Aircraft.Fuel.MAX_CAPACITY_MASS are converged.

For conventional aircraft, BWBFuselageMass is replaced by FuselageMass.
