The mass of the fuel consumed throughout the flight, and possibly consumed during the reserve mission as well, is calculated in aviary_group.py. The fuel mass can be estimated in premission by assuming that the difference between the gross mass and the zero fuel mass is given to fuel. However, for off-design missions, this estimate will be inaccurate. For many design missions it can also be inaccurate. These issues can be compounded by the fact that the aircraft could have some payload it was dropping during the mission. Deployable payloads (payloads that are not delivered to the final destination) currently do not have any place in the overall aircraft mass buildup.

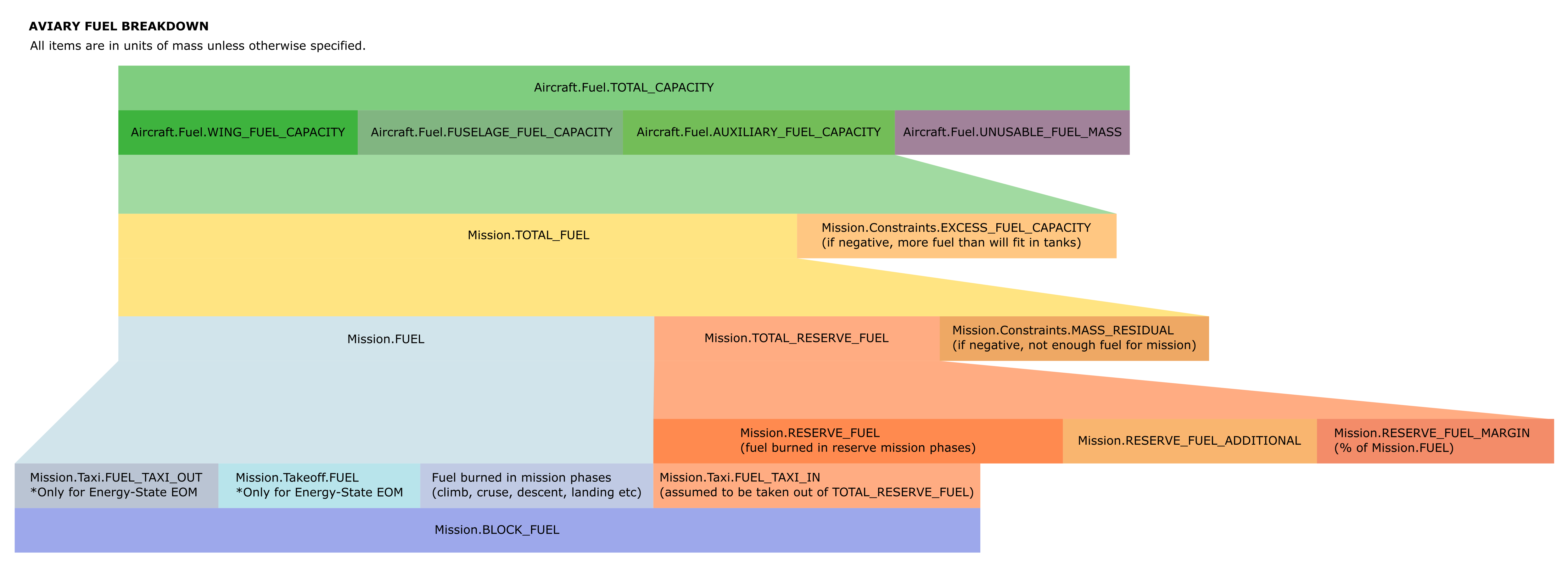

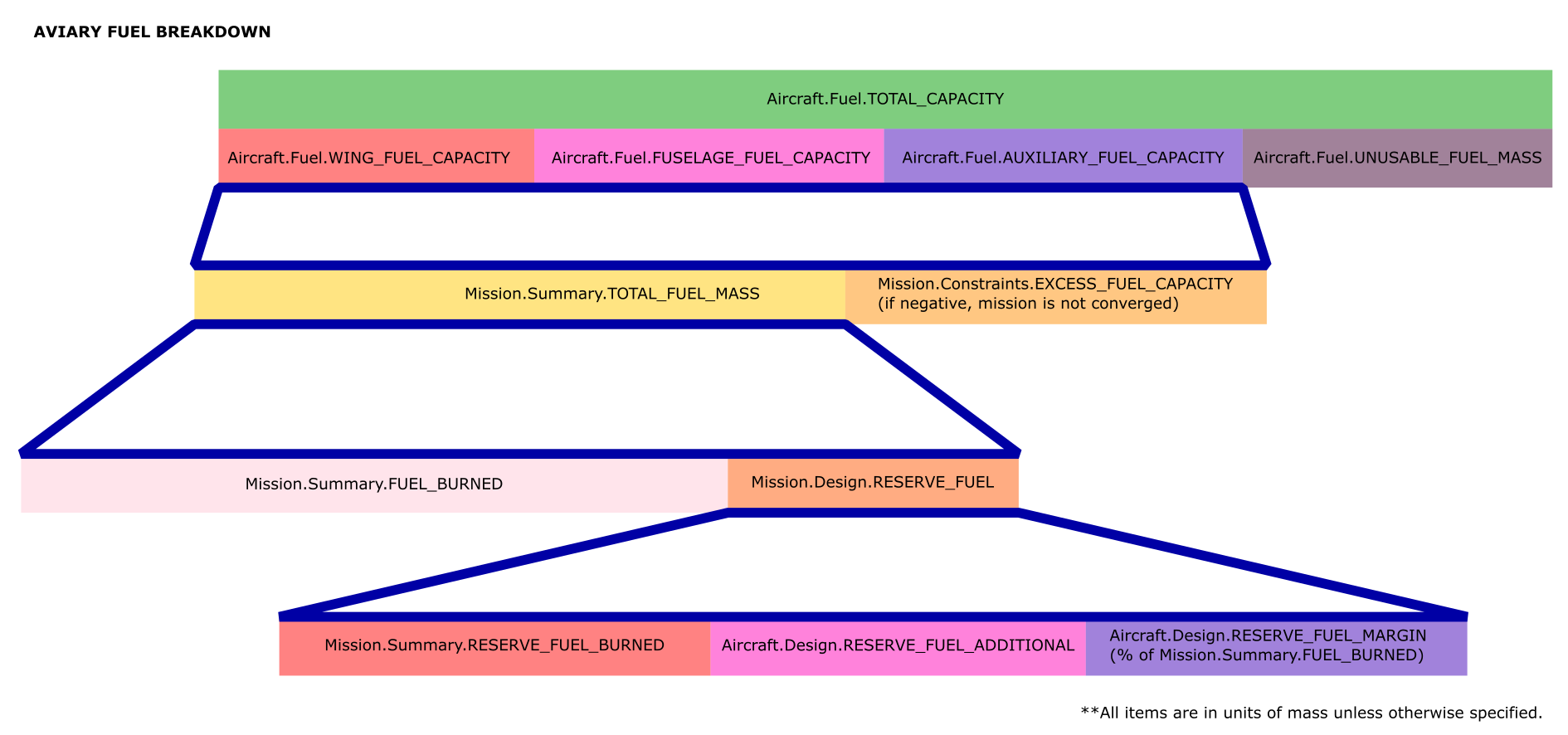

Fuel Breakdown

Fuel Mass#

The Fuel Mass breakdown is shown below. Note that UNUSABLE_FUEL_MASS is not accounted for in this mass and is instead book kept under USEFUL_LOAD which contributes to OPERATING_MASS see mass subsystem for details.

  • TOTAL_FUEL (mass)

    • FUEL (mass)

      • FUEL_TAXI_OUT (mass)

      • Takeoff.FUEL (mass)

      • Fuel burned in regular mission phases (mass) (i.e. anything drescribed in mission info).

    • TOTAL_RESERVE_FUEL (mass)

      • RESERVE_FUEL (mass)

      • RESERVE_FUEL_ADDITIONAL (mass)

      • RESERVE_FUEL_MARGIN (%)

Maximum Fuel Mass#

The total mass fuel that can fit into the aircraft, regardless of fuel mass or gross mass constraints is as follows:

  • TOTAL_CAPACITY (mass)

    • WING_FUEL_CAPACITY (mass)

    • FUSEALGE_FUEL_CAPACITY (mass)

    • AUXILIARY_FUEL_CAPACITY (mass)

    • UNUSABLE_FUEL_MASS (mass)

Block Fuel#

The amount of fuel it takes to get from the departure gate at the source airport to the arrival gate at the destination airport, not including any of the reserve mission fuel.

  • BLOCK_FUEL (mass)

    • FUEL_TAXI_OUT

    • Takeoff.FUEL

    • Fuel burned in regular mission phases (mass) (i.e. anything drescribed in mission info).

    • FUEL_TAXI_IN

Caveats#

FUEL_TAXI_OUT and Takeoff.FUEL are only applicable to energy-state EOM and should never be used with 2DOF EOMs. This is because the latter includes both taxi and takeoff in the regular mission phases.

FUEL_TAXI_IN can be used with either energy-state or 2DOF EOMs, as long as no taxi-in phase has been added in the mission info. If a taxi-in phase is added into the mission info, then that taxi-in fuel burn will end up getting counted twice, once as part of fuel burned in regular mission phases, and once as FUEL_TAXI_IN. Additionally, FUEL_TAXI_IN is drawn from TOTAL_RESERVE_FUEL. There is no constraint enforced to ensure that you have enough reserve fuel to taxi-in. It is assumed that if you must burn all of your reserve fuel for the reserve mission, then the fact that the aircraft has no fuel leftover to taxi-in to the gate is not an issue.

Constraints#

A fuel mass constraint is used to ensure the fuel mass does not exceed the total fuel allowed in the fuel tanks. This is essentially a volume constraint but we track it as a mass because all the fuel-tank capacities are tracked as mass not volume. This is enforced by evaluating Mission.Constraints.EXCESS_FUEL_CAPACITY. If this value is below zero, then there is more fuel mass than capacity in the tanks. This constraint can be disabled by setting Aircraft.Fuel.IGNORE_FUEL_CAPACITY_CONSTRAINT to True.

A second mass constraint is used to ensure that the fuel loaded into the aircraft is equal to the fuel used for the main and reserve mission. This constraint is always enforced by Mission.Constraints.MASS_RESIDUAL. If this value goes below zero, that means the mission and reserve mission require more fuel that was originally loaded onto the aircraft. In standard usage, Aviary forces this constraint to equal zero. However, if the user wishes to fly with more fuel than required in order to “resupply fuel to a remote location”, the user could modify the Aviary code (‘developer’ installation required) and set the constraint to lower=0.0 in aviary_group.py. Caution will need to be taken to ensure the ref is of the right magnitude otherwise the optimizer may not try as hard as needed to minimize this value.
