Two-Burn Orbit Raise

Two-Burn Orbit Raise#

This example demonstrates the use of a Trajectory to encapsulate a three-phase orbit raising maneuver with a burn-coast-burn phase sequence. This example is based on the problem provided in Enright [EC91].

The dynamics are given by

(58)#\[\begin{align} \frac{dr}{dt} &= v_r \\ \frac{d\theta}{dt} &= \frac{v_\theta}{r} \\ \frac{dv_r}{dt} &= \frac{v^2_\theta}{r} - \frac{1}{r^2} + a_{thrust} \sin u_1 \\ \frac{dv_\theta}{dt} &= - \frac{v_r v_\theta}{r} + a_{thrust} \cos u_1 \\ \frac{da_{thrust}}{dt} &= \frac{a^2_{thrust}}{c} \\ \frac{d \Delta v}{dt} &= a_{thrust} \end{align}\]

The initial conditions are

(59)#\[\begin{align} r &= 1 \rm{\,DU} \\ \theta &= 0 \rm{\,rad} \\ v_r &= 0 \rm{\,DU/TU}\\ v_\theta &= 1 \rm{\,DU/TU}\\ a_{thrust} &= 0.1 \rm{\,DU/TU^2}\\ \Delta v &= 0 \rm{\,DU/TU} \end{align}\]

and the final conditions are

(60)#\[\begin{align} r &= 3 \rm{\,DU} \\ \theta &= \rm{free} \\ v_r &= 0 \rm{\,DU/TU}\\ v_\theta &= \sqrt{\frac{1}{3}} \rm{\,DU/TU}\\ a_{thrust} &= \rm{free}\\ \Delta v &= \rm{free} \end{align}\]

Building and running the problem#

The following code instantiates our problem, our trajectory, three phases, and links them accordingly. The spacecraft initial position, velocity, and acceleration magnitude are fixed. The objective is to minimize the delta-V needed to raise the spacecraft into a circular orbit at 3 Earth radii.

Note the call to link_phases which provides time, position, velocity, and delta-V continuity across all phases, and acceleration continuity between the first and second burn phases. Acceleration is 0 during the coast phase. Alternatively, we could have specified a different ODE for the coast phase, as in the example.

This example runs inconsistently with SLSQP but is solved handily by IPOPT and SNOPT.

Show code cell outputs

Hide code cell outputs

import numpy as np
import openmdao.api as om
import openmdao.utils.units as units

# Add canonical units to OpenMDAO
MU_earth = 3.986592936294783e14
R_earth = 6378137.0

period = 2 * np.pi * np.sqrt(R_earth**3 / MU_earth)

# Add canonical time and distance units for these EOM
units.add_unit('TU', '{0}*s'.format(period))
units.add_unit('DU', '{0}*m'.format(R_earth))


class FiniteBurnODE(om.ExplicitComponent):

    def initialize(self):
        self.options.declare('num_nodes', types=int)

    def setup(self):
        nn = self.options['num_nodes']

        # Inputs
        self.add_input('r',
                       val=np.ones(nn),
                       desc='radius from center of attraction',
                       units='DU')

        self.add_input('theta',
                       val=np.zeros(nn),
                       desc='anomaly term',
                       units='rad')

        self.add_input('vr',
                       val=np.zeros(nn),
                       desc='local vertical velocity component',
                       units='DU/TU')

        self.add_input('vt',
                       val=np.zeros(nn),
                       desc='local horizontal velocity component',
                       units='DU/TU')

        self.add_input('accel',
                       val=np.zeros(nn),
                       desc='acceleration due to thrust',
                       units='DU/TU**2')

        self.add_input('u1',
                       val=np.zeros(nn),
                       desc='thrust angle above local horizontal',
                       units='rad')

        self.add_input('c',
                       val=np.zeros(nn),
                       desc='exhaust velocity',
                       units='DU/TU')

        self.add_output('r_dot',
                        val=np.ones(nn),
                        desc='rate of change of radius from center of attraction',
                        units='DU/TU')

        self.add_output('theta_dot',
                        val=np.zeros(nn),
                        desc='rate of change of anomaly term',
                        units='rad/TU')

        self.add_output('vr_dot',
                        val=np.zeros(nn),
                        desc='rate of change of local vertical velocity component',
                        units='DU/TU**2')

        self.add_output('vt_dot',
                        val=np.zeros(nn),
                        desc='rate of change of local horizontal velocity component',
                        units='DU/TU**2')

        self.add_output('at_dot',
                        val=np.zeros(nn),
                        desc='rate of change of acceleration due to thrust',
                        units='DU/TU**3')

        self.add_output('deltav_dot',
                        val=np.zeros(nn),
                        desc='rate of change of delta-V',
                        units='DU/TU**2')

        self.add_output('pos_x',
                        val=np.zeros(nn),
                        desc='x-component of position',
                        units='DU')

        self.add_output('pos_y',
                        val=np.zeros(nn),
                        desc='x-component of position',
                        units='DU')

        # Setup partials
        ar = np.arange(self.options['num_nodes'])

        # r dot is a linear function of vr, so provide the partial value here
        self.declare_partials(of='r_dot', wrt='vr', rows=ar, cols=ar, val=1.0)

        self.declare_partials(of='theta_dot', wrt='r', rows=ar, cols=ar)
        self.declare_partials(of='theta_dot', wrt='vt', rows=ar, cols=ar)

        self.declare_partials(of='vr_dot', wrt='r', rows=ar, cols=ar)
        self.declare_partials(of='vr_dot', wrt='vt', rows=ar, cols=ar)
        self.declare_partials(of='vr_dot', wrt='accel', rows=ar, cols=ar)
        self.declare_partials(of='vr_dot', wrt='u1', rows=ar, cols=ar)

        self.declare_partials(of='vt_dot', wrt='r', rows=ar, cols=ar)
        self.declare_partials(of='vt_dot', wrt='vr', rows=ar, cols=ar)
        self.declare_partials(of='vt_dot', wrt='vt', rows=ar, cols=ar)
        self.declare_partials(of='vt_dot', wrt='accel', rows=ar, cols=ar)
        self.declare_partials(of='vt_dot', wrt='u1', rows=ar, cols=ar)

        self.declare_partials(of='at_dot', wrt='accel', rows=ar, cols=ar)
        self.declare_partials(of='at_dot', wrt='c', rows=ar, cols=ar)

        self.declare_partials(of='deltav_dot', wrt='accel', rows=ar, cols=ar, val=1.0)

        self.declare_partials(of='pos_x', wrt='r', rows=ar, cols=ar)
        self.declare_partials(of='pos_x', wrt='theta', rows=ar, cols=ar)

        self.declare_partials(of='pos_y', wrt='r', rows=ar, cols=ar)
        self.declare_partials(of='pos_y', wrt='theta', rows=ar, cols=ar)

    def compute(self, inputs, outputs):
        r = inputs['r']
        theta = inputs['theta']
        vr = inputs['vr']
        vt = inputs['vt']
        at = inputs['accel']
        u1 = inputs['u1']
        c = inputs['c']

        outputs['r_dot'] = vr
        outputs['theta_dot'] = vt / r
        outputs['vr_dot'] = vt**2 / r - 1 / r**2 + at * np.sin(u1)
        outputs['vt_dot'] = -vr * vt / r + at * np.cos(u1)
        outputs['at_dot'] = at**2 / c
        outputs['deltav_dot'] = at

        outputs['pos_x'] = r * np.cos(theta)
        outputs['pos_y'] = r * np.sin(theta)

    def compute_partials(self, inputs, partials):
        r = inputs['r']
        theta = inputs['theta']
        vr = inputs['vr']
        vt = inputs['vt']
        at = inputs['accel']
        u1 = inputs['u1']
        c = inputs['c']

        su1 = np.sin(u1)
        cu1 = np.cos(u1)

        partials['theta_dot', 'r'] = -vt / r**2
        partials['theta_dot', 'vt'] = 1.0 / r

        partials['vr_dot', 'r'] = -vt**2 / r**2 + 2.0 / r**3
        partials['vr_dot', 'vt'] = 2 * vt / r
        partials['vr_dot', 'accel'] = su1
        partials['vr_dot', 'u1'] = at * cu1

        partials['vt_dot', 'r'] = vr * vt / r**2
        partials['vt_dot', 'vr'] = -vt / r
        partials['vt_dot', 'vt'] = -vr / r
        partials['vt_dot', 'accel'] = cu1
        partials['vt_dot', 'u1'] = -at * su1

        partials['at_dot', 'accel'] = 2 * at / c
        partials['at_dot', 'c'] = -at**2 / c**2

        partials['pos_x', 'r'] = np.cos(theta)
        partials['pos_x', 'theta'] = -r * np.sin(theta)

        partials['pos_y', 'r'] = np.sin(theta)
        partials['pos_y', 'theta'] = r * np.cos(theta)

import numpy as np
import openmdao.api as om
import dymos as dm
import matplotlib.pyplot as plt
from dymos.examples.finite_burn_orbit_raise.finite_burn_eom import FiniteBurnODE

p = om.Problem(model=om.Group())

p.driver = om.pyOptSparseDriver()
p.driver.options['optimizer'] = 'IPOPT'
p.driver.declare_coloring()

traj = dm.Trajectory()

traj.add_parameter('c', opt=False, val=1.5, units='DU/TU',
                   targets={'burn1': ['c'], 'coast': ['c'], 'burn2': ['c']})

# First Phase (burn)

burn1 = dm.Phase(ode_class=FiniteBurnODE,
                 transcription=dm.GaussLobatto(num_segments=5, order=3, compressed=False))

burn1 = traj.add_phase('burn1', burn1)

burn1.set_time_options(fix_initial=True, duration_bounds=(.5, 10), units='TU')
burn1.add_state('r', fix_initial=True, fix_final=False, defect_scaler=100.0,
                rate_source='r_dot', units='DU')
burn1.add_state('theta', fix_initial=True, fix_final=False, defect_scaler=100.0,
                rate_source='theta_dot', units='rad')
burn1.add_state('vr', fix_initial=True, fix_final=False, defect_scaler=100.0,
                rate_source='vr_dot', units='DU/TU')
burn1.add_state('vt', fix_initial=True, fix_final=False, defect_scaler=100.0,
                rate_source='vt_dot', units='DU/TU')
burn1.add_state('accel', fix_initial=True, fix_final=False,
                rate_source='at_dot', units='DU/TU**2')
burn1.add_state('deltav', fix_initial=True, fix_final=False,
                rate_source='deltav_dot', units='DU/TU')
burn1.add_control('u1', rate_continuity=True, rate2_continuity=True, units='deg',
                  scaler=0.01, rate_continuity_scaler=0.001, rate2_continuity_scaler=0.001,
                  lower=-30, upper=30)
# Second Phase (Coast)
coast = dm.Phase(ode_class=FiniteBurnODE,
                 transcription=dm.GaussLobatto(num_segments=5, order=3, compressed=False))

coast.set_time_options(initial_bounds=(0.5, 20), duration_bounds=(.5, 50), duration_ref=50,
                       units='TU')
coast.add_state('r', fix_initial=False, fix_final=False, defect_scaler=100.0,
                rate_source='r_dot', targets=['r'], units='DU')
coast.add_state('theta', fix_initial=False, fix_final=False, defect_scaler=100.0,
                rate_source='theta_dot', targets=['theta'], units='rad')
coast.add_state('vr', fix_initial=False, fix_final=False, defect_scaler=100.0,
                rate_source='vr_dot', targets=['vr'], units='DU/TU')
coast.add_state('vt', fix_initial=False, fix_final=False, defect_scaler=100.0,
                rate_source='vt_dot', targets=['vt'], units='DU/TU')
coast.add_state('accel', fix_initial=True, fix_final=True,
                rate_source='at_dot', targets=['accel'], units='DU/TU**2')
coast.add_state('deltav', fix_initial=False, fix_final=False,
                rate_source='deltav_dot', units='DU/TU')

coast.add_parameter('u1', opt=False, val=0.0, units='deg', targets=['u1'])

# Third Phase (burn)
burn2 = dm.Phase(ode_class=FiniteBurnODE,
                 transcription=dm.GaussLobatto(num_segments=5, order=3, compressed=False))

traj.add_phase('coast', coast)
traj.add_phase('burn2', burn2)

burn2.set_time_options(initial_bounds=(0.5, 50), duration_bounds=(.5, 10), initial_ref=10,
                       units='TU')
burn2.add_state('r', fix_initial=False, fix_final=True, defect_scaler=100.0,
                rate_source='r_dot', units='DU')
burn2.add_state('theta', fix_initial=False, fix_final=False, defect_scaler=100.0,
                rate_source='theta_dot', units='rad')
burn2.add_state('vr', fix_initial=False, fix_final=True, defect_scaler=1000.0,
                rate_source='vr_dot', units='DU/TU')
burn2.add_state('vt', fix_initial=False, fix_final=True, defect_scaler=1000.0,
                rate_source='vt_dot', units='DU/TU')
burn2.add_state('accel', fix_initial=False, fix_final=False, defect_scaler=1.0,
                rate_source='at_dot', units='DU/TU**2')
burn2.add_state('deltav', fix_initial=False, fix_final=False, defect_scaler=1.0,
                rate_source='deltav_dot', units='DU/TU')

burn2.add_objective('deltav', loc='final', scaler=100.0)

burn2.add_control('u1', rate_continuity=True, rate2_continuity=True, units='deg',
                  scaler=0.01, lower=-90, upper=90)

burn1.add_timeseries_output('pos_x')
coast.add_timeseries_output('pos_x')
burn2.add_timeseries_output('pos_x')

burn1.add_timeseries_output('pos_y')
coast.add_timeseries_output('pos_y')
burn2.add_timeseries_output('pos_y')

# Link Phases
traj.link_phases(phases=['burn1', 'coast', 'burn2'],
                 vars=['time', 'r', 'theta', 'vr', 'vt', 'deltav'])

traj.link_phases(phases=['burn1', 'burn2'], vars=['accel'])

p.model.add_subsystem('traj', subsys=traj)

# Finish Problem Setup

p.setup(check=True)

# Set Initial Guesses
p.set_val('traj.parameters:c', val=1.5, units='DU/TU')

burn1 = p.model.traj.phases.burn1
burn2 = p.model.traj.phases.burn2
coast = p.model.traj.phases.coast

burn1.set_time_val(initial=0.0, duration=2.25)
burn1.set_state_val('r', [1, 1.5])
burn1.set_state_val('theta', [0, 1.7])
burn1.set_state_val('vr', [0, 0])
burn1.set_state_val('vt', [1, 1])
burn1.set_state_val('accel', [0.1, 0.0])
burn1.set_state_val('deltav', [0, 0.1])
burn1.set_control_val('u1', [-3.5, 13.0])

coast.set_time_val(initial=2.25, duration=3.0)
coast.set_state_val('r', [1.3, 1.5])
coast.set_state_val('theta', [2.1767, 1.7])
coast.set_state_val('vr', [0.3285, 0])
coast.set_state_val('vt', [0.97, 1])
coast.set_state_val('accel', [0, 0])

burn2.set_time_val(initial=5.25, duration=1.75)
burn2.set_state_val('r', [1, 3])
burn2.set_state_val('theta', [0, 4])
burn2.set_state_val('vr', [0, 0])
burn2.set_state_val('vt', [1, np.sqrt(1 / 3)])
burn2.set_state_val('accel', [0.1, 0.0])
burn2.set_state_val('deltav', [0.1, 0.2])
burn2.set_control_val('u1', [0, 0])

dm.run_problem(p, simulate=True)

INFO: checking out_of_order...

INFO:     out_of_order check complete (0.001012 sec).

INFO: checking system...

INFO:     system check complete (0.000030 sec).

INFO: checking solvers...

INFO:     solvers check complete (0.000308 sec).

INFO: checking dup_inputs...

INFO:     dup_inputs check complete (0.000249 sec).

INFO: checking missing_recorders...

INFO:     missing_recorders check complete (0.000003 sec).

INFO: checking unserializable_options...

INFO:     unserializable_options check complete (0.003801 sec).

INFO: checking comp_has_no_outputs...

INFO:     comp_has_no_outputs check complete (0.000071 sec).

INFO: checking auto_ivc_warnings...

INFO:     auto_ivc_warnings check complete (0.000003 sec).

INFO: checking out_of_order...

INFO:     out_of_order check complete (0.000504 sec).

INFO: checking system...

INFO:     system check complete (0.000026 sec).

INFO: checking solvers...

INFO:     solvers check complete (0.000218 sec).

INFO: checking dup_inputs...

INFO:     dup_inputs check complete (0.000246 sec).

INFO: checking missing_recorders...

INFO:     missing_recorders check complete (0.000003 sec).

INFO: checking unserializable_options...

INFO:     unserializable_options check complete (0.003687 sec).

INFO: checking comp_has_no_outputs...

INFO:     comp_has_no_outputs check complete (0.000066 sec).

INFO: checking auto_ivc_warnings...

INFO:     auto_ivc_warnings check complete (0.000003 sec).

Jacobian shape: (112, 204)  (3.64% nonzero)
FWD solves: 13   REV solves: 0
Total colors vs. total size: 13 vs 204  (93.63% improvement)

Sparsity computed using tolerance: 1e-25.
Dense total jacobian for Problem 'problem' was computed 3 times.
Time to compute sparsity:   0.4458 sec
Time to compute coloring:   0.1129 sec
Memory to compute coloring:   0.1250 MB
Coloring created on: 2025-08-08 20:10:59

Optimization Problem -- Optimization using pyOpt_sparse
================================================================================
    Objective Function: _objfunc

    Solution:
--------------------------------------------------------------------------------
    Total Time:                    2.7973
       User Objective Time :       0.1134
       User Sensitivity Time :     2.3006
       Interface Time :            0.1954
       Opt Solver Time:            0.1879
    Calls to Objective Function :      28
    Calls to Sens Function :           28


   Objectives
      Index  Name                                Value
          0  traj.burn2.states:deltav     3.989839E+01

   Variables (c - continuous, i - integer, d - discrete)
      Index  Name                         Type      Lower Bound            Value      Upper Bound     Status
          0  traj.burn1.t_duration_0         c     5.000000E-01     2.228030E+00     1.000000E+01
          1  traj.burn1.states:r_0           c    -1.000000E+21     1.002411E+00     1.000000E+21
          2  traj.burn1.states:r_1           c    -1.000000E+21     1.002411E+00     1.000000E+21
          3  traj.burn1.states:r_2           c    -1.000000E+21     1.021674E+00     1.000000E+21
          4  traj.burn1.states:r_3           c    -1.000000E+21     1.021674E+00     1.000000E+21
          5  traj.burn1.states:r_4           c    -1.000000E+21     1.072668E+00     1.000000E+21
          6  traj.burn1.states:r_5           c    -1.000000E+21     1.072668E+00     1.000000E+21
          7  traj.burn1.states:r_6           c    -1.000000E+21     1.162426E+00     1.000000E+21
          8  traj.burn1.states:r_7           c    -1.000000E+21     1.162426E+00     1.000000E+21
          9  traj.burn1.states:r_8           c    -1.000000E+21     1.289870E+00     1.000000E+21
         10  traj.burn1.states:theta_0       c    -1.000000E+21     4.551154E-01     1.000000E+21
         11  traj.burn1.states:theta_1       c    -1.000000E+21     4.551154E-01     1.000000E+21
         12  traj.burn1.states:theta_2       c    -1.000000E+21     9.219251E-01     1.000000E+21
         13  traj.burn1.states:theta_3       c    -1.000000E+21     9.219251E-01     1.000000E+21
         14  traj.burn1.states:theta_4       c    -1.000000E+21     1.378635E+00     1.000000E+21
         15  traj.burn1.states:theta_5       c    -1.000000E+21     1.378635E+00     1.000000E+21
         16  traj.burn1.states:theta_6       c    -1.000000E+21     1.798766E+00     1.000000E+21
         17  traj.burn1.states:theta_7       c    -1.000000E+21     1.798766E+00     1.000000E+21
         18  traj.burn1.states:theta_8       c    -1.000000E+21     2.165052E+00     1.000000E+21
         19  traj.burn1.states:vr_0          c    -1.000000E+21     1.772243E-02     1.000000E+21
         20  traj.burn1.states:vr_1          c    -1.000000E+21     1.772243E-02     1.000000E+21
         21  traj.burn1.states:vr_2          c    -1.000000E+21     7.447792E-02     1.000000E+21
         22  traj.burn1.states:vr_3          c    -1.000000E+21     7.447792E-02     1.000000E+21
         23  traj.burn1.states:vr_4          c    -1.000000E+21     1.570336E-01     1.000000E+21
         24  traj.burn1.states:vr_5          c    -1.000000E+21     1.570336E-01     1.000000E+21
         25  traj.burn1.states:vr_6          c    -1.000000E+21     2.452608E-01     1.000000E+21
         26  traj.burn1.states:vr_7          c    -1.000000E+21     2.452608E-01     1.000000E+21
         27  traj.burn1.states:vr_8          c    -1.000000E+21     3.247035E-01     1.000000E+21
         28  traj.burn1.states:vt_0          c    -1.000000E+21     1.042686E+00     1.000000E+21
         29  traj.burn1.states:vt_1          c    -1.000000E+21     1.042686E+00     1.000000E+21
         30  traj.burn1.states:vt_2          c    -1.000000E+21     1.069132E+00     1.000000E+21
         31  traj.burn1.states:vt_3          c    -1.000000E+21     1.069132E+00     1.000000E+21
         32  traj.burn1.states:vt_4          c    -1.000000E+21     1.065074E+00     1.000000E+21
         33  traj.burn1.states:vt_5          c    -1.000000E+21     1.065074E+00     1.000000E+21
         34  traj.burn1.states:vt_6          c    -1.000000E+21     1.030094E+00     1.000000E+21
         35  traj.burn1.states:vt_7          c    -1.000000E+21     1.030094E+00     1.000000E+21
         36  traj.burn1.states:vt_8          c    -1.000000E+21     9.761629E-01     1.000000E+21
         37  traj.burn1.states:accel_0       c    -1.000000E+21     1.030617E-01     1.000000E+21
         38  traj.burn1.states:accel_1       c    -1.000000E+21     1.030617E-01     1.000000E+21
         39  traj.burn1.states:accel_2       c    -1.000000E+21     1.063167E-01     1.000000E+21
         40  traj.burn1.states:accel_3       c    -1.000000E+21     1.063167E-01     1.000000E+21
         41  traj.burn1.states:accel_4       c    -1.000000E+21     1.097841E-01     1.000000E+21
         42  traj.burn1.states:accel_5       c    -1.000000E+21     1.097841E-01     1.000000E+21
         43  traj.burn1.states:accel_6       c    -1.000000E+21     1.134853E-01     1.000000E+21
         44  traj.burn1.states:accel_7       c    -1.000000E+21     1.134853E-01     1.000000E+21
         45  traj.burn1.states:accel_8       c    -1.000000E+21     1.174447E-01     1.000000E+21
         46  traj.burn1.states:deltav_0      c    -1.000000E+21     4.523589E-02     1.000000E+21
         47  traj.burn1.states:deltav_1      c    -1.000000E+21     4.523589E-02     1.000000E+21
         48  traj.burn1.states:deltav_2      c    -1.000000E+21     9.187850E-02     1.000000E+21
         49  traj.burn1.states:deltav_3      c    -1.000000E+21     9.187850E-02     1.000000E+21
         50  traj.burn1.states:deltav_4      c    -1.000000E+21     1.400181E-01     1.000000E+21
         51  traj.burn1.states:deltav_5      c    -1.000000E+21     1.400181E-01     1.000000E+21
         52  traj.burn1.states:deltav_6      c    -1.000000E+21     1.897541E-01     1.000000E+21
         53  traj.burn1.states:deltav_7      c    -1.000000E+21     1.897541E-01     1.000000E+21
         54  traj.burn1.states:deltav_8      c    -1.000000E+21     2.411959E-01     1.000000E+21
         55  traj.burn1.controls:u1_0        c    -3.000000E-01    -3.871082E-02     3.000000E-01
         56  traj.burn1.controls:u1_1        c    -3.000000E-01    -2.977418E-02     3.000000E-01
         57  traj.burn1.controls:u1_2        c    -3.000000E-01    -1.798095E-02     3.000000E-01
         58  traj.burn1.controls:u1_3        c    -3.000000E-01    -1.798095E-02     3.000000E-01
         59  traj.burn1.controls:u1_4        c    -3.000000E-01    -3.205161E-03     3.000000E-01
         60  traj.burn1.controls:u1_5        c    -3.000000E-01     1.467911E-02     3.000000E-01
         61  traj.burn1.controls:u1_6        c    -3.000000E-01     1.467911E-02     3.000000E-01
         62  traj.burn1.controls:u1_7        c    -3.000000E-01     3.450564E-02     3.000000E-01
         63  traj.burn1.controls:u1_8        c    -3.000000E-01     5.510823E-02     3.000000E-01
         64  traj.burn1.controls:u1_9        c    -3.000000E-01     5.510823E-02     3.000000E-01
         65  traj.burn1.controls:u1_10       c    -3.000000E-01     7.549970E-02     3.000000E-01
         66  traj.burn1.controls:u1_11       c    -3.000000E-01     9.469292E-02     3.000000E-01
         67  traj.burn1.controls:u1_12       c    -3.000000E-01     9.469292E-02     3.000000E-01
         68  traj.burn1.controls:u1_13       c    -3.000000E-01     1.125798E-01     3.000000E-01
         69  traj.burn1.controls:u1_14       c    -3.000000E-01     1.290522E-01     3.000000E-01
         70  traj.burn2.t_initial_0          c     5.000000E-02     9.614472E-01     5.000000E+00
         71  traj.burn2.t_duration_0         c     5.000000E-01     1.275260E+00     1.000000E+01
         72  traj.burn2.states:r_0           c    -1.000000E+21     2.985662E+00     1.000000E+21
         73  traj.burn2.states:r_1           c    -1.000000E+21     2.992648E+00     1.000000E+21
         74  traj.burn2.states:r_2           c    -1.000000E+21     2.992648E+00     1.000000E+21
         75  traj.burn2.states:r_3           c    -1.000000E+21     2.996948E+00     1.000000E+21
         76  traj.burn2.states:r_4           c    -1.000000E+21     2.996948E+00     1.000000E+21
         77  traj.burn2.states:r_5           c    -1.000000E+21     2.999153E+00     1.000000E+21
         78  traj.burn2.states:r_6           c    -1.000000E+21     2.999153E+00     1.000000E+21
         79  traj.burn2.states:r_7           c    -1.000000E+21     2.999922E+00     1.000000E+21
         80  traj.burn2.states:r_8           c    -1.000000E+21     2.999922E+00     1.000000E+21
         81  traj.burn2.states:theta_0       c    -1.000000E+21     4.156692E+00     1.000000E+21
         82  traj.burn2.states:theta_1       c    -1.000000E+21     4.193917E+00     1.000000E+21
         83  traj.burn2.states:theta_2       c    -1.000000E+21     4.193917E+00     1.000000E+21
         84  traj.burn2.states:theta_3       c    -1.000000E+21     4.233604E+00     1.000000E+21
         85  traj.burn2.states:theta_4       c    -1.000000E+21     4.233604E+00     1.000000E+21
         86  traj.burn2.states:theta_5       c    -1.000000E+21     4.275859E+00     1.000000E+21
         87  traj.burn2.states:theta_6       c    -1.000000E+21     4.275859E+00     1.000000E+21
         88  traj.burn2.states:theta_7       c    -1.000000E+21     4.320784E+00     1.000000E+21
         89  traj.burn2.states:theta_8       c    -1.000000E+21     4.320784E+00     1.000000E+21
         90  traj.burn2.states:theta_9       c    -1.000000E+21     4.368465E+00     1.000000E+21
         91  traj.burn2.states:vr_0          c    -1.000000E+21     3.335965E-02     1.000000E+21
         92  traj.burn2.states:vr_1          c    -1.000000E+21     2.176356E-02     1.000000E+21
         93  traj.burn2.states:vr_2          c    -1.000000E+21     2.176356E-02     1.000000E+21
         94  traj.burn2.states:vr_3          c    -1.000000E+21     1.234448E-02     1.000000E+21
         95  traj.burn2.states:vr_4          c    -1.000000E+21     1.234448E-02     1.000000E+21
         96  traj.burn2.states:vr_5          c    -1.000000E+21     5.372873E-03     1.000000E+21
         97  traj.burn2.states:vr_6          c    -1.000000E+21     5.372873E-03     1.000000E+21
         98  traj.burn2.states:vr_7          c    -1.000000E+21     1.148444E-03     1.000000E+21
         99  traj.burn2.states:vr_8          c    -1.000000E+21     1.148444E-03     1.000000E+21
        100  traj.burn2.states:vt_0          c    -1.000000E+21     4.217795E-01     1.000000E+21
        101  traj.burn2.states:vt_1          c    -1.000000E+21     4.510118E-01     1.000000E+21
        102  traj.burn2.states:vt_2          c    -1.000000E+21     4.510118E-01     1.000000E+21
        103  traj.burn2.states:vt_3          c    -1.000000E+21     4.812208E-01     1.000000E+21
        104  traj.burn2.states:vt_4          c    -1.000000E+21     4.812208E-01     1.000000E+21
        105  traj.burn2.states:vt_5          c    -1.000000E+21     5.123842E-01     1.000000E+21
        106  traj.burn2.states:vt_6          c    -1.000000E+21     5.123842E-01     1.000000E+21
        107  traj.burn2.states:vt_7          c    -1.000000E+21     5.444541E-01     1.000000E+21
        108  traj.burn2.states:vt_8          c    -1.000000E+21     5.444541E-01     1.000000E+21
        109  traj.burn2.states:accel_0       c    -1.000000E+21     1.174447E-01     1.000000E+21
        110  traj.burn2.states:accel_1       c    -1.000000E+21     1.198378E-01     1.000000E+21
        111  traj.burn2.states:accel_2       c    -1.000000E+21     1.198378E-01     1.000000E+21
        112  traj.burn2.states:accel_3       c    -1.000000E+21     1.223305E-01     1.000000E+21
        113  traj.burn2.states:accel_4       c    -1.000000E+21     1.223305E-01     1.000000E+21
        114  traj.burn2.states:accel_5       c    -1.000000E+21     1.249291E-01     1.000000E+21
        115  traj.burn2.states:accel_6       c    -1.000000E+21     1.249291E-01     1.000000E+21
        116  traj.burn2.states:accel_7       c    -1.000000E+21     1.276404E-01     1.000000E+21
        117  traj.burn2.states:accel_8       c    -1.000000E+21     1.276404E-01     1.000000E+21
        118  traj.burn2.states:accel_9       c    -1.000000E+21     1.304721E-01     1.000000E+21
        119  traj.burn2.states:deltav_0      c    -1.000000E+21     2.411959E-01     1.000000E+21
        120  traj.burn2.states:deltav_1      c    -1.000000E+21     2.714535E-01     1.000000E+21
        121  traj.burn2.states:deltav_2      c    -1.000000E+21     2.714535E-01     1.000000E+21
        122  traj.burn2.states:deltav_3      c    -1.000000E+21     3.023341E-01     1.000000E+21
        123  traj.burn2.states:deltav_4      c    -1.000000E+21     3.023341E-01     1.000000E+21
        124  traj.burn2.states:deltav_5      c    -1.000000E+21     3.338638E-01     1.000000E+21
        125  traj.burn2.states:deltav_6      c    -1.000000E+21     3.338638E-01     1.000000E+21
        126  traj.burn2.states:deltav_7      c    -1.000000E+21     3.660705E-01     1.000000E+21
        127  traj.burn2.states:deltav_8      c    -1.000000E+21     3.660705E-01     1.000000E+21
        128  traj.burn2.states:deltav_9      c    -1.000000E+21     3.989839E-01     1.000000E+21
        129  traj.burn2.controls:u1_0        c    -9.000000E-01     1.545347E-02     9.000000E-01
        130  traj.burn2.controls:u1_1        c    -9.000000E-01     1.315257E-02     9.000000E-01
        131  traj.burn2.controls:u1_2        c    -9.000000E-01     1.113035E-02     9.000000E-01
        132  traj.burn2.controls:u1_3        c    -9.000000E-01     1.113035E-02     9.000000E-01
        133  traj.burn2.controls:u1_4        c    -9.000000E-01     9.453512E-03     9.000000E-01
        134  traj.burn2.controls:u1_5        c    -9.000000E-01     8.188743E-03     9.000000E-01
        135  traj.burn2.controls:u1_6        c    -9.000000E-01     8.188743E-03     9.000000E-01
        136  traj.burn2.controls:u1_7        c    -9.000000E-01     7.310470E-03     9.000000E-01
        137  traj.burn2.controls:u1_8        c    -9.000000E-01     6.793120E-03     9.000000E-01
        138  traj.burn2.controls:u1_9        c    -9.000000E-01     6.793120E-03     9.000000E-01
        139  traj.burn2.controls:u1_10       c    -9.000000E-01     6.670239E-03     9.000000E-01
        140  traj.burn2.controls:u1_11       c    -9.000000E-01     6.975374E-03     9.000000E-01
        141  traj.burn2.controls:u1_12       c    -9.000000E-01     6.975374E-03     9.000000E-01
        142  traj.burn2.controls:u1_13       c    -9.000000E-01     7.640932E-03     9.000000E-01
        143  traj.burn2.controls:u1_14       c    -9.000000E-01     8.599319E-03     9.000000E-01
        144  traj.coast.t_initial_0          c     5.000000E-01     2.228030E+00     2.000000E+01
        145  traj.coast.t_duration_0         c     1.000000E-02     1.477288E-01     1.000000E+00
        146  traj.coast.states:r_0           c    -1.000000E+21     1.289870E+00     1.000000E+21
        147  traj.coast.states:r_1           c    -1.000000E+21     1.826968E+00     1.000000E+21
        148  traj.coast.states:r_2           c    -1.000000E+21     1.826968E+00     1.000000E+21
        149  traj.coast.states:r_3           c    -1.000000E+21     2.302606E+00     1.000000E+21
        150  traj.coast.states:r_4           c    -1.000000E+21     2.302606E+00     1.000000E+21
        151  traj.coast.states:r_5           c    -1.000000E+21     2.652890E+00     1.000000E+21
        152  traj.coast.states:r_6           c    -1.000000E+21     2.652890E+00     1.000000E+21
        153  traj.coast.states:r_7           c    -1.000000E+21     2.878553E+00     1.000000E+21
        154  traj.coast.states:r_8           c    -1.000000E+21     2.878553E+00     1.000000E+21
        155  traj.coast.states:r_9           c    -1.000000E+21     2.985662E+00     1.000000E+21
        156  traj.coast.states:theta_0       c    -1.000000E+21     2.165052E+00     1.000000E+21
        157  traj.coast.states:theta_1       c    -1.000000E+21     2.959738E+00     1.000000E+21
        158  traj.coast.states:theta_2       c    -1.000000E+21     2.959738E+00     1.000000E+21
        159  traj.coast.states:theta_3       c    -1.000000E+21     3.397868E+00     1.000000E+21
        160  traj.coast.states:theta_4       c    -1.000000E+21     3.397868E+00     1.000000E+21
        161  traj.coast.states:theta_5       c    -1.000000E+21     3.699817E+00     1.000000E+21
        162  traj.coast.states:theta_6       c    -1.000000E+21     3.699817E+00     1.000000E+21
        163  traj.coast.states:theta_7       c    -1.000000E+21     3.941656E+00     1.000000E+21
        164  traj.coast.states:theta_8       c    -1.000000E+21     3.941656E+00     1.000000E+21
        165  traj.coast.states:theta_9       c    -1.000000E+21     4.156692E+00     1.000000E+21
        166  traj.coast.states:vr_0          c    -1.000000E+21     3.247035E-01     1.000000E+21
        167  traj.coast.states:vr_1          c    -1.000000E+21     3.587987E-01     1.000000E+21
        168  traj.coast.states:vr_2          c    -1.000000E+21     3.587987E-01     1.000000E+21
        169  traj.coast.states:vr_3          c    -1.000000E+21     2.804133E-01     1.000000E+21
        170  traj.coast.states:vr_4          c    -1.000000E+21     2.804133E-01     1.000000E+21
        171  traj.coast.states:vr_5          c    -1.000000E+21     1.941954E-01     1.000000E+21
        172  traj.coast.states:vr_6          c    -1.000000E+21     1.941954E-01     1.000000E+21
        173  traj.coast.states:vr_7          c    -1.000000E+21     1.120415E-01     1.000000E+21
        174  traj.coast.states:vr_8          c    -1.000000E+21     1.120415E-01     1.000000E+21
        175  traj.coast.states:vr_9          c    -1.000000E+21     3.335965E-02     1.000000E+21
        176  traj.coast.states:vt_0          c    -1.000000E+21     9.761629E-01     1.000000E+21
        177  traj.coast.states:vt_1          c    -1.000000E+21     6.893012E-01     1.000000E+21
        178  traj.coast.states:vt_2          c    -1.000000E+21     6.893012E-01     1.000000E+21
        179  traj.coast.states:vt_3          c    -1.000000E+21     5.469078E-01     1.000000E+21
        180  traj.coast.states:vt_4          c    -1.000000E+21     5.469078E-01     1.000000E+21
        181  traj.coast.states:vt_5          c    -1.000000E+21     4.746893E-01     1.000000E+21
        182  traj.coast.states:vt_6          c    -1.000000E+21     4.746893E-01     1.000000E+21
        183  traj.coast.states:vt_7          c    -1.000000E+21     4.374743E-01     1.000000E+21
        184  traj.coast.states:vt_8          c    -1.000000E+21     4.374743E-01     1.000000E+21
        185  traj.coast.states:vt_9          c    -1.000000E+21     4.217795E-01     1.000000E+21
        186  traj.coast.states:accel_0       c    -1.000000E+21     6.055623E-19     1.000000E+21
        187  traj.coast.states:accel_1       c    -1.000000E+21     8.944450E-19     1.000000E+21
        188  traj.coast.states:accel_2       c    -1.000000E+21     1.235889E-18     1.000000E+21
        189  traj.coast.states:accel_3       c    -1.000000E+21     1.323683E-18     1.000000E+21
        190  traj.coast.states:accel_4       c    -1.000000E+21     1.292078E-18     1.000000E+21
        191  traj.coast.states:accel_5       c    -1.000000E+21     1.174599E-18     1.000000E+21
        192  traj.coast.states:accel_6       c    -1.000000E+21     8.199374E-19     1.000000E+21
        193  traj.coast.states:accel_7       c    -1.000000E+21     5.510405E-19     1.000000E+21
        194  traj.coast.states:deltav_0      c    -1.000000E+21     2.411959E-01     1.000000E+21
        195  traj.coast.states:deltav_1      c    -1.000000E+21     2.411959E-01     1.000000E+21
        196  traj.coast.states:deltav_2      c    -1.000000E+21     2.411959E-01     1.000000E+21
        197  traj.coast.states:deltav_3      c    -1.000000E+21     2.411959E-01     1.000000E+21
        198  traj.coast.states:deltav_4      c    -1.000000E+21     2.411959E-01     1.000000E+21
        199  traj.coast.states:deltav_5      c    -1.000000E+21     2.411959E-01     1.000000E+21
        200  traj.coast.states:deltav_6      c    -1.000000E+21     2.411959E-01     1.000000E+21
        201  traj.coast.states:deltav_7      c    -1.000000E+21     2.411959E-01     1.000000E+21
        202  traj.coast.states:deltav_8      c    -1.000000E+21     2.411959E-01     1.000000E+21
        203  traj.coast.states:deltav_9      c    -1.000000E+21     2.411959E-01     1.000000E+21

   Constraints (i - inequality, e - equality)
      Index  Name                                                    Type          Lower           Value           Upper    Status  Lagrange Multiplier
          0  traj.linkages.burn1:time_final|coast:time_initial          e   0.000000E+00    0.000000E+00    0.000000E+00               3.36119E-11
          1  traj.linkages.burn1:r_final|coast:r_initial                e   0.000000E+00    0.000000E+00    0.000000E+00              -6.46260E+01
          2  traj.linkages.burn1:theta_final|coast:theta_initial        e   0.000000E+00    0.000000E+00    0.000000E+00              -1.38625E-09
          3  traj.linkages.burn1:vr_final|coast:vr_initial              e   0.000000E+00    0.000000E+00    0.000000E+00              -2.24803E+01
          4  traj.linkages.burn1:vt_final|coast:vt_initial              e   0.000000E+00    0.000000E+00    0.000000E+00              -9.84946E+01
          5  traj.linkages.burn1:deltav_final|coast:deltav_initial      e   0.000000E+00    0.000000E+00    0.000000E+00               1.00000E+02
          6  traj.linkages.coast:time_final|burn2:time_initial          e   0.000000E+00    0.000000E+00    0.000000E+00              -6.18589E-12
          7  traj.linkages.coast:r_final|burn2:r_initial                e   0.000000E+00    0.000000E+00    0.000000E+00              -1.76856E+01
          8  traj.linkages.coast:theta_final|burn2:theta_initial        e   0.000000E+00    0.000000E+00    0.000000E+00              -7.76459E-10
          9  traj.linkages.coast:vr_final|burn2:vr_initial              e   0.000000E+00    0.000000E+00    0.000000E+00              -2.71580E+00
         10  traj.linkages.coast:vt_final|burn2:vt_initial              e   0.000000E+00    0.000000E+00    0.000000E+00              -1.00155E+02
         11  traj.linkages.coast:deltav_final|burn2:deltav_initial      e   0.000000E+00    0.000000E+00    0.000000E+00               1.00000E+02
         12  traj.linkages.burn1:accel_final|burn2:accel_initial        e   0.000000E+00    0.000000E+00    0.000000E+00              -2.53581E-01
         13  traj.burn1.collocation_constraint.defects:r                e   0.000000E+00   -1.265793E-14    0.000000E+00               1.28817E+00
         14  traj.burn1.collocation_constraint.defects:r                e   0.000000E+00    1.329566E-14    0.000000E+00               1.29152E+00
         15  traj.burn1.collocation_constraint.defects:r                e   0.000000E+00    6.493227E-15    0.000000E+00               1.23041E+00
         16  traj.burn1.collocation_constraint.defects:r                e   0.000000E+00    1.236805E-15    0.000000E+00               1.10376E+00
         17  traj.burn1.collocation_constraint.defects:r                e   0.000000E+00   -1.236805E-15    0.000000E+00               9.43352E-01
         18  traj.burn1.collocation_constraint.defects:theta            e   0.000000E+00    1.484166E-14    0.000000E+00               2.17199E-11
         19  traj.burn1.collocation_constraint.defects:theta            e   0.000000E+00   -4.947221E-15    0.000000E+00               2.18145E-11
         20  traj.burn1.collocation_constraint.defects:theta            e   0.000000E+00    1.978888E-14    0.000000E+00               2.13244E-11
         21  traj.burn1.collocation_constraint.defects:theta            e   0.000000E+00   -9.894441E-15    0.000000E+00               2.03159E-11
         22  traj.burn1.collocation_constraint.defects:theta            e   0.000000E+00    1.731527E-14    0.000000E+00               1.90148E-11
         23  traj.burn1.collocation_constraint.defects:vr               e   0.000000E+00    9.430639E-15    0.000000E+00              -6.92120E-02
         24  traj.burn1.collocation_constraint.defects:vr               e   0.000000E+00    1.236805E-14    0.000000E+00              -6.34585E-03
         25  traj.burn1.collocation_constraint.defects:vr               e   0.000000E+00    1.236805E-15    0.000000E+00               8.57711E-02
         26  traj.burn1.collocation_constraint.defects:vr               e   0.000000E+00    6.184026E-15    0.000000E+00               1.83634E-01
         27  traj.burn1.collocation_constraint.defects:vr               e   0.000000E+00   -9.276039E-15    0.000000E+00               2.66192E-01
         28  traj.burn1.collocation_constraint.defects:vt               e   0.000000E+00   -3.092013E-15    0.000000E+00               1.35529E+00
         29  traj.burn1.collocation_constraint.defects:vt               e   0.000000E+00    8.657636E-15    0.000000E+00               1.40601E+00
         30  traj.burn1.collocation_constraint.defects:vt               e   0.000000E+00   -1.619442E-14    0.000000E+00               1.41796E+00
         31  traj.burn1.collocation_constraint.defects:vt               e   0.000000E+00    2.226249E-14    0.000000E+00               1.39112E+00
         32  traj.burn1.collocation_constraint.defects:vt               e   0.000000E+00   -1.329566E-14    0.000000E+00               1.34093E+00
         33  traj.burn1.collocation_constraint.defects:accel            e   0.000000E+00   -6.957029E-18    0.000000E+00               1.48289E+01
         34  traj.burn1.collocation_constraint.defects:accel            e   0.000000E+00    1.932508E-18    0.000000E+00               1.17352E+01
         35  traj.burn1.collocation_constraint.defects:accel            e   0.000000E+00   -6.184026E-18    0.000000E+00               7.42535E+00
         36  traj.burn1.collocation_constraint.defects:accel            e   0.000000E+00    1.546006E-17    0.000000E+00               3.46704E+00
         37  traj.burn1.collocation_constraint.defects:accel            e   0.000000E+00   -6.184026E-18    0.000000E+00               9.70278E-01
         38  traj.burn1.collocation_constraint.defects:deltav           e   0.000000E+00    9.276039E-18    0.000000E+00              -1.33333E+02
         39  traj.burn1.collocation_constraint.defects:deltav           e   0.000000E+00    1.236805E-17    0.000000E+00              -1.33333E+02
         40  traj.burn1.collocation_constraint.defects:deltav           e   0.000000E+00   -2.473610E-17    0.000000E+00              -1.33333E+02
         41  traj.burn1.collocation_constraint.defects:deltav           e   0.000000E+00    3.092013E-17    0.000000E+00              -1.33333E+02
         42  traj.burn1.collocation_constraint.defects:deltav           e   0.000000E+00    3.092013E-18    0.000000E+00              -1.33333E+02
         43  traj.burn1.continuity_comp.defect_states:r                 e   0.000000E+00    0.000000E+00    0.000000E+00               9.73892E+01
         44  traj.burn1.continuity_comp.defect_states:r                 e   0.000000E+00    0.000000E+00    0.000000E+00               9.54877E+01
         45  traj.burn1.continuity_comp.defect_states:r                 e   0.000000E+00    0.000000E+00    0.000000E+00               8.82063E+01
         46  traj.burn1.continuity_comp.defect_states:r                 e   0.000000E+00    0.000000E+00    0.000000E+00               7.69316E+01
         47  traj.burn1.continuity_comp.defect_states:theta             e   0.000000E+00    0.000000E+00    0.000000E+00               1.63254E-09
         48  traj.burn1.continuity_comp.defect_states:theta             e   0.000000E+00    0.000000E+00    0.000000E+00               1.61771E-09
         49  traj.burn1.continuity_comp.defect_states:theta             e   0.000000E+00    0.000000E+00    0.000000E+00               1.56151E-09
         50  traj.burn1.continuity_comp.defect_states:theta             e   0.000000E+00    0.000000E+00    0.000000E+00               1.47490E-09
         51  traj.burn1.continuity_comp.defect_states:vr                e   0.000000E+00    0.000000E+00    0.000000E+00              -3.32087E+00
         52  traj.burn1.continuity_comp.defect_states:vr                e   0.000000E+00    0.000000E+00    0.000000E+00               2.74187E+00
         53  traj.burn1.continuity_comp.defect_states:vr                e   0.000000E+00    0.000000E+00    0.000000E+00               1.01921E+01
         54  traj.burn1.continuity_comp.defect_states:vr                e   0.000000E+00    0.000000E+00    0.000000E+00               1.71505E+01
         55  traj.burn1.continuity_comp.defect_states:vt                e   0.000000E+00    0.000000E+00    0.000000E+00               1.03967E+02
         56  traj.burn1.continuity_comp.defect_states:vt                e   0.000000E+00    0.000000E+00    0.000000E+00               1.06421E+02
         57  traj.burn1.continuity_comp.defect_states:vt                e   0.000000E+00    0.000000E+00    0.000000E+00               1.05753E+02
         58  traj.burn1.continuity_comp.defect_states:vt                e   0.000000E+00    0.000000E+00    0.000000E+00               1.02612E+02
         59  traj.burn1.continuity_comp.defect_states:accel             e   0.000000E+00    0.000000E+00    0.000000E+00               1.02191E+01
         60  traj.burn1.continuity_comp.defect_states:accel             e   0.000000E+00    0.000000E+00    0.000000E+00               7.23618E+00
         61  traj.burn1.continuity_comp.defect_states:accel             e   0.000000E+00    0.000000E+00    0.000000E+00               3.95428E+00
         62  traj.burn1.continuity_comp.defect_states:accel             e   0.000000E+00    0.000000E+00    0.000000E+00               1.43810E+00
         63  traj.burn1.continuity_comp.defect_states:deltav            e   0.000000E+00    0.000000E+00    0.000000E+00              -1.00000E+02
         64  traj.burn1.continuity_comp.defect_states:deltav            e   0.000000E+00    0.000000E+00    0.000000E+00              -1.00000E+02
         65  traj.burn1.continuity_comp.defect_states:deltav            e   0.000000E+00    0.000000E+00    0.000000E+00              -1.00000E+02
         66  traj.burn1.continuity_comp.defect_states:deltav            e   0.000000E+00    0.000000E+00    0.000000E+00              -1.00000E+02
         67  traj.burn1.continuity_comp.defect_control_rates:u1_rate    e   0.000000E+00    0.000000E+00    0.000000E+00               5.04690E-03
         68  traj.burn1.continuity_comp.defect_control_rates:u1_rate    e   0.000000E+00   -3.957777E-18    0.000000E+00               1.13756E-03
         69  traj.burn1.continuity_comp.defect_control_rates:u1_rate    e   0.000000E+00    1.978888E-17    0.000000E+00               6.27088E-06
         70  traj.burn1.continuity_comp.defect_control_rates:u1_rate    e   0.000000E+00    1.385222E-17    0.000000E+00              -3.21095E-03
         71  traj.burn1.continuity_comp.defect_controls:u1              e   0.000000E+00    0.000000E+00    0.000000E+00               2.73331E-06
         72  traj.burn1.continuity_comp.defect_controls:u1              e   0.000000E+00    0.000000E+00    0.000000E+00              -3.57484E-06
         73  traj.burn1.continuity_comp.defect_controls:u1              e   0.000000E+00    0.000000E+00    0.000000E+00              -1.98447E-06
         74  traj.burn1.continuity_comp.defect_controls:u1              e   0.000000E+00    0.000000E+00    0.000000E+00               2.87365E-06
         75  traj.burn2.collocation_constraint.defects:r                e   0.000000E+00    2.787401E-15    0.000000E+00               2.35342E-01
         76  traj.burn2.collocation_constraint.defects:r                e   0.000000E+00    5.110236E-14    0.000000E+00               2.34619E-01
         77  traj.burn2.collocation_constraint.defects:r                e   0.000000E+00   -2.771916E-14    0.000000E+00               2.34151E-01
         78  traj.burn2.collocation_constraint.defects:r                e   0.000000E+00    4.006336E-14    0.000000E+00               2.33858E-01
         79  traj.burn2.collocation_constraint.defects:r                e   0.000000E+00   -3.317090E-14    0.000000E+00               2.33656E-01
         80  traj.burn2.collocation_constraint.defects:theta            e   0.000000E+00   -6.725158E-14    0.000000E+00               9.35627E-12
         81  traj.burn2.collocation_constraint.defects:theta            e   0.000000E+00   -3.114810E-14    0.000000E+00               7.33726E-12
         82  traj.burn2.collocation_constraint.defects:theta            e   0.000000E+00   -2.336108E-14    0.000000E+00               5.28981E-12
         83  traj.burn2.collocation_constraint.defects:theta            e   0.000000E+00    4.141282E-14    0.000000E+00               3.20700E-12
         84  traj.burn2.collocation_constraint.defects:theta            e   0.000000E+00    3.539557E-15    0.000000E+00               1.08469E-12
         85  traj.burn2.collocation_constraint.defects:vr               e   0.000000E+00    7.079114E-15    0.000000E+00               3.07736E-03
         86  traj.burn2.collocation_constraint.defects:vr               e   0.000000E+00    8.848893E-16    0.000000E+00               2.22200E-03
         87  traj.burn2.collocation_constraint.defects:vr               e   0.000000E+00   -4.424446E-16    0.000000E+00               1.71840E-03
         88  traj.burn2.collocation_constraint.defects:vr               e   0.000000E+00    7.521559E-15    0.000000E+00               1.57232E-03
         89  traj.burn2.collocation_constraint.defects:vr               e   0.000000E+00   -2.544057E-15    0.000000E+00               1.78995E-03
         90  traj.burn2.collocation_constraint.defects:vt               e   0.000000E+00   -4.601424E-14    0.000000E+00               1.33588E-01
         91  traj.burn2.collocation_constraint.defects:vt               e   0.000000E+00    6.548181E-14    0.000000E+00               1.33637E-01
         92  traj.burn2.collocation_constraint.defects:vt               e   0.000000E+00   -9.025871E-14    0.000000E+00               1.33621E-01
         93  traj.burn2.collocation_constraint.defects:vt               e   0.000000E+00    4.955380E-14    0.000000E+00               1.33544E-01
         94  traj.burn2.collocation_constraint.defects:vt               e   0.000000E+00   -1.061867E-14    0.000000E+00               1.33407E-01
         95  traj.burn2.collocation_constraint.defects:accel            e   0.000000E+00   -1.327334E-18    0.000000E+00               2.96116E-01
         96  traj.burn2.collocation_constraint.defects:accel            e   0.000000E+00    1.305212E-17    0.000000E+00               2.06628E-01
         97  traj.burn2.collocation_constraint.defects:accel            e   0.000000E+00   -1.172478E-17    0.000000E+00               1.19542E-01
         98  traj.burn2.collocation_constraint.defects:accel            e   0.000000E+00    1.216723E-17    0.000000E+00               4.87446E-02
         99  traj.burn2.collocation_constraint.defects:accel            e   0.000000E+00   -6.857892E-18    0.000000E+00               7.52728E-03
        100  traj.burn2.collocation_constraint.defects:deltav           e   0.000000E+00   -5.309336E-17    0.000000E+00              -1.33333E+02
        101  traj.burn2.collocation_constraint.defects:deltav           e   0.000000E+00    2.300712E-17    0.000000E+00              -1.33333E+02
        102  traj.burn2.collocation_constraint.defects:deltav           e   0.000000E+00   -5.309336E-18    0.000000E+00              -1.33333E+02
        103  traj.burn2.collocation_constraint.defects:deltav           e   0.000000E+00    1.769779E-17    0.000000E+00              -1.33333E+02
        104  traj.burn2.collocation_constraint.defects:deltav           e   0.000000E+00   -1.061867E-17    0.000000E+00              -1.33333E+02
        105  traj.burn2.continuity_comp.defect_states:r                 e   0.000000E+00    0.000000E+00    0.000000E+00               1.76199E+01
        106  traj.burn2.continuity_comp.defect_states:r                 e   0.000000E+00    0.000000E+00    0.000000E+00               1.75762E+01
        107  traj.burn2.continuity_comp.defect_states:r                 e   0.000000E+00    0.000000E+00    0.000000E+00               1.75486E+01
        108  traj.burn2.continuity_comp.defect_states:r                 e   0.000000E+00    0.000000E+00    0.000000E+00               1.75312E+01
        109  traj.burn2.continuity_comp.defect_states:theta             e   0.000000E+00    0.000000E+00    0.000000E+00               6.26007E-10
        110  traj.burn2.continuity_comp.defect_states:theta             e   0.000000E+00    0.000000E+00    0.000000E+00               4.73515E-10
        111  traj.burn2.continuity_comp.defect_states:theta             e   0.000000E+00    0.000000E+00    0.000000E+00               3.18631E-10
        112  traj.burn2.continuity_comp.defect_states:theta             e   0.000000E+00    0.000000E+00    0.000000E+00               1.60939E-10
        113  traj.burn2.continuity_comp.defect_states:vr                e   0.000000E+00    0.000000E+00    0.000000E+00               1.94361E+00
        114  traj.burn2.continuity_comp.defect_states:vr                e   0.000000E+00    0.000000E+00    0.000000E+00               1.43334E+00
        115  traj.burn2.continuity_comp.defect_states:vr                e   0.000000E+00    0.000000E+00    0.000000E+00               1.18894E+00
        116  traj.burn2.continuity_comp.defect_states:vr                e   0.000000E+00    2.168404E-19    0.000000E+00               1.21500E+00
        117  traj.burn2.continuity_comp.defect_states:vt                e   0.000000E+00    0.000000E+00    0.000000E+00               1.00218E+02
        118  traj.burn2.continuity_comp.defect_states:vt                e   0.000000E+00    0.000000E+00    0.000000E+00               1.00229E+02
        119  traj.burn2.continuity_comp.defect_states:vt                e   0.000000E+00    0.000000E+00    0.000000E+00               1.00194E+02
        120  traj.burn2.continuity_comp.defect_states:vt                e   0.000000E+00    0.000000E+00    0.000000E+00               1.00114E+02
        121  traj.burn2.continuity_comp.defect_states:accel             e   0.000000E+00    0.000000E+00    0.000000E+00               1.89136E-01
        122  traj.burn2.continuity_comp.defect_states:accel             e   0.000000E+00    0.000000E+00    0.000000E+00               1.21151E-01
        123  traj.burn2.continuity_comp.defect_states:accel             e   0.000000E+00    0.000000E+00    0.000000E+00               6.02455E-02
        124  traj.burn2.continuity_comp.defect_states:accel             e   0.000000E+00    0.000000E+00    0.000000E+00               1.66198E-02
        125  traj.burn2.continuity_comp.defect_states:deltav            e   0.000000E+00    0.000000E+00    0.000000E+00              -1.00000E+02
        126  traj.burn2.continuity_comp.defect_states:deltav            e   0.000000E+00    0.000000E+00    0.000000E+00              -1.00000E+02
        127  traj.burn2.continuity_comp.defect_states:deltav            e   0.000000E+00    0.000000E+00    0.000000E+00              -1.00000E+02
        128  traj.burn2.continuity_comp.defect_states:deltav            e   0.000000E+00    0.000000E+00    0.000000E+00              -1.00000E+02
        129  traj.burn2.continuity_comp.defect_control_rates:u1_rate    e   0.000000E+00   -1.132658E-15    0.000000E+00               2.70338E-07
        130  traj.burn2.continuity_comp.defect_control_rates:u1_rate    e   0.000000E+00   -4.247469E-16    0.000000E+00               1.83827E-07
        131  traj.burn2.continuity_comp.defect_control_rates:u1_rate    e   0.000000E+00   -2.017548E-15    0.000000E+00               1.85294E-07
        132  traj.burn2.continuity_comp.defect_control_rates:u1_rate    e   0.000000E+00   -4.990776E-15    0.000000E+00               3.08323E-07
        133  traj.burn2.continuity_comp.defect_controls:u1              e   0.000000E+00    0.000000E+00    0.000000E+00               2.36681E-07
        134  traj.burn2.continuity_comp.defect_controls:u1              e   0.000000E+00    0.000000E+00    0.000000E+00              -1.03649E-07
        135  traj.burn2.continuity_comp.defect_controls:u1              e   0.000000E+00    0.000000E+00    0.000000E+00               1.54730E-07
        136  traj.burn2.continuity_comp.defect_controls:u1              e   0.000000E+00    0.000000E+00    0.000000E+00              -2.35150E-07
        137  traj.coast.collocation_constraint.defects:r                e   0.000000E+00   -4.100299E-15    0.000000E+00               6.51946E-01
        138  traj.coast.collocation_constraint.defects:r                e   0.000000E+00    8.200598E-15    0.000000E+00               4.09769E-01
        139  traj.coast.collocation_constraint.defects:r                e   0.000000E+00    3.075224E-14    0.000000E+00               3.09746E-01
        140  traj.coast.collocation_constraint.defects:r                e   0.000000E+00   -4.100299E-15    0.000000E+00               2.62939E-01
        141  traj.coast.collocation_constraint.defects:r                e   0.000000E+00   -5.842926E-14    0.000000E+00               2.41149E-01
        142  traj.coast.collocation_constraint.defects:theta            e   0.000000E+00    0.000000E+00    0.000000E+00               1.79512E-11
        143  traj.coast.collocation_constraint.defects:theta            e   0.000000E+00   -1.640120E-14    0.000000E+00               1.62877E-11
        144  traj.coast.collocation_constraint.defects:theta            e   0.000000E+00    1.845135E-14    0.000000E+00               1.46826E-11
        145  traj.coast.collocation_constraint.defects:theta            e   0.000000E+00   -4.715344E-14    0.000000E+00               1.30768E-11
        146  traj.coast.collocation_constraint.defects:theta            e   0.000000E+00    9.635703E-14    0.000000E+00               1.13498E-11
        147  traj.coast.collocation_constraint.defects:vr               e   0.000000E+00    5.125374E-15    0.000000E+00               3.33082E-01
        148  traj.coast.collocation_constraint.defects:vr               e   0.000000E+00   -5.125374E-16    0.000000E+00               2.96282E-01
        149  traj.coast.collocation_constraint.defects:vr               e   0.000000E+00   -3.075224E-15    0.000000E+00               2.19622E-01
        150  traj.coast.collocation_constraint.defects:vr               e   0.000000E+00   -6.150449E-15    0.000000E+00               1.43539E-01
        151  traj.coast.collocation_constraint.defects:vr               e   0.000000E+00    5.125374E-16    0.000000E+00               7.13580E-02
        152  traj.coast.collocation_constraint.defects:vt               e   0.000000E+00   -4.100299E-15    0.000000E+00               1.24448E+00
        153  traj.coast.collocation_constraint.defects:vt               e   0.000000E+00    1.230090E-14    0.000000E+00               1.22184E+00
        154  traj.coast.collocation_constraint.defects:vt               e   0.000000E+00   -6.662986E-15    0.000000E+00               1.25922E+00
        155  traj.coast.collocation_constraint.defects:vt               e   0.000000E+00    3.075224E-15    0.000000E+00               1.30095E+00
        156  traj.coast.collocation_constraint.defects:vt               e   0.000000E+00    1.025075E-15    0.000000E+00               1.32831E+00
        157  traj.coast.collocation_constraint.defects:accel            e   0.000000E+00    4.541717E-19    0.000000E+00               1.57265E+01
        158  traj.coast.collocation_constraint.defects:accel            e   0.000000E+00    2.560827E-19    0.000000E+00               3.17211E+01
        159  traj.coast.collocation_constraint.defects:accel            e   0.000000E+00   -2.370403E-20    0.000000E+00               4.56742E+01
        160  traj.coast.collocation_constraint.defects:accel            e   0.000000E+00   -2.659960E-19    0.000000E+00               5.34290E+01
        161  traj.coast.collocation_constraint.defects:accel            e   0.000000E+00   -4.132804E-19    0.000000E+00               5.59606E+01
        162  traj.coast.collocation_constraint.defects:deltav           e   0.000000E+00   -3.354713E-19    0.000000E+00              -1.33333E+02
        163  traj.coast.collocation_constraint.defects:deltav           e   0.000000E+00   -2.893574E-17    0.000000E+00              -1.33333E+02
        164  traj.coast.collocation_constraint.defects:deltav           e   0.000000E+00    2.630649E-17    0.000000E+00              -1.33333E+02
        165  traj.coast.collocation_constraint.defects:deltav           e   0.000000E+00   -1.104939E-18    0.000000E+00              -1.33333E+02
        166  traj.coast.collocation_constraint.defects:deltav           e   0.000000E+00   -3.052672E-19    0.000000E+00              -1.33333E+02
        167  traj.coast.continuity_comp.defect_states:r                 e   0.000000E+00    0.000000E+00    0.000000E+00               3.70881E+01
        168  traj.coast.continuity_comp.defect_states:r                 e   0.000000E+00    0.000000E+00    0.000000E+00               2.60159E+01
        169  traj.coast.continuity_comp.defect_states:r                 e   0.000000E+00    0.000000E+00    0.000000E+00               2.10638E+01
        170  traj.coast.continuity_comp.defect_states:r                 e   0.000000E+00    0.000000E+00    0.000000E+00               1.86759E+01
        171  traj.coast.continuity_comp.defect_states:theta             e   0.000000E+00    0.000000E+00    0.000000E+00               1.28396E-09
        172  traj.coast.continuity_comp.defect_states:theta             e   0.000000E+00    0.000000E+00    0.000000E+00               1.16139E-09
        173  traj.coast.continuity_comp.defect_states:theta             e   0.000000E+00    0.000000E+00    0.000000E+00               1.04098E-09
        174  traj.coast.continuity_comp.defect_states:theta             e   0.000000E+00    0.000000E+00    0.000000E+00               9.15999E-10
        175  traj.coast.continuity_comp.defect_states:vr                e   0.000000E+00    0.000000E+00    0.000000E+00               2.46701E+01
        176  traj.coast.continuity_comp.defect_states:vr                e   0.000000E+00    0.000000E+00    0.000000E+00               1.93854E+01
        177  traj.coast.continuity_comp.defect_states:vr                e   0.000000E+00    0.000000E+00    0.000000E+00               1.35586E+01
        178  traj.coast.continuity_comp.defect_states:vr                e   0.000000E+00    0.000000E+00    0.000000E+00               8.01335E+00
        179  traj.coast.continuity_comp.defect_states:vt                e   0.000000E+00    0.000000E+00    0.000000E+00               9.12968E+01
        180  traj.coast.continuity_comp.defect_states:vt                e   0.000000E+00    0.000000E+00    0.000000E+00               9.28067E+01
        181  traj.coast.continuity_comp.defect_states:vt                e   0.000000E+00    0.000000E+00    0.000000E+00               9.61260E+01
        182  traj.coast.continuity_comp.defect_states:vt                e   0.000000E+00    0.000000E+00    0.000000E+00               9.88357E+01
        183  traj.coast.continuity_comp.defect_states:accel             e   0.000000E+00    2.888827E-19    0.000000E+00               1.73775E+01
        184  traj.coast.continuity_comp.defect_states:accel             e   0.000000E+00    8.779436E-20    0.000000E+00               2.97305E+01
        185  traj.coast.continuity_comp.defect_states:accel             e   0.000000E+00   -1.174788E-19    0.000000E+00               3.79420E+01
        186  traj.coast.continuity_comp.defect_states:accel             e   0.000000E+00   -2.688969E-19    0.000000E+00               4.15295E+01
        187  traj.coast.continuity_comp.defect_states:deltav            e   0.000000E+00    0.000000E+00    0.000000E+00              -1.00000E+02
        188  traj.coast.continuity_comp.defect_states:deltav            e   0.000000E+00    0.000000E+00    0.000000E+00              -1.00000E+02
        189  traj.coast.continuity_comp.defect_states:deltav            e   0.000000E+00    0.000000E+00    0.000000E+00              -1.00000E+02
        190  traj.coast.continuity_comp.defect_states:deltav            e   0.000000E+00    0.000000E+00    0.000000E+00              -1.00000E+02


   Exit Status
      Inform  Description
           0  Solve Succeeded
--------------------------------------------------------------------------------

/usr/share/miniconda/envs/test/lib/python3.13/site-packages/openmdao/visualization/opt_report/opt_report.py:611: UserWarning: Attempting to set identical low and high ylims makes transformation singular; automatically expanding.
  ax.set_ylim([ymin_plot, ymax_plot])

Simulating trajectory traj

Done simulating trajectory traj

Problem: problem
Driver:  pyOptSparseDriver
  success     : True
  iterations  : 30
  runtime     : 3.5195E+00 s
  model_evals : 30
  model_time  : 1.0550E-01 s
  deriv_evals : 29
  deriv_time  : 1.9208E+00 s
  exit_status : SUCCESS

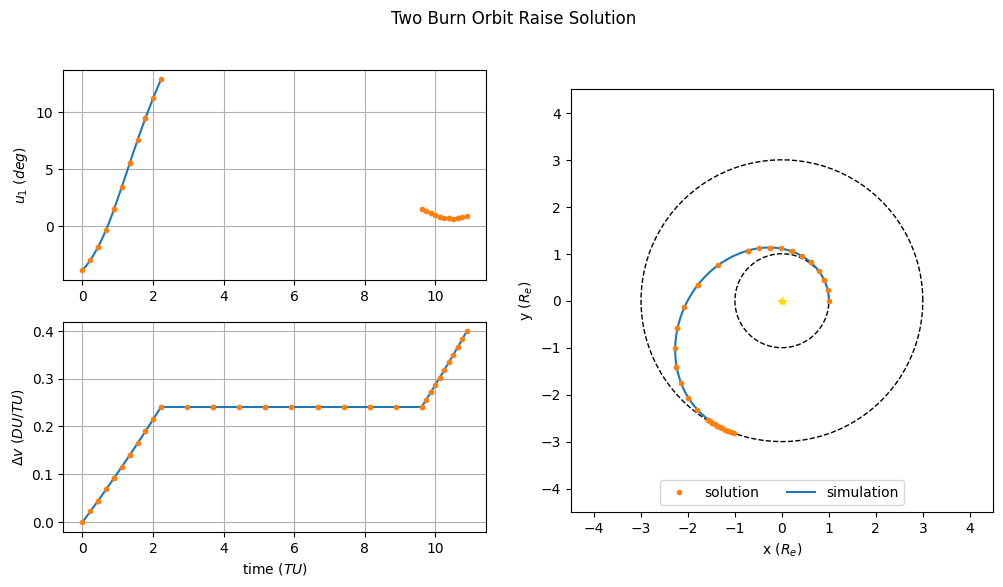

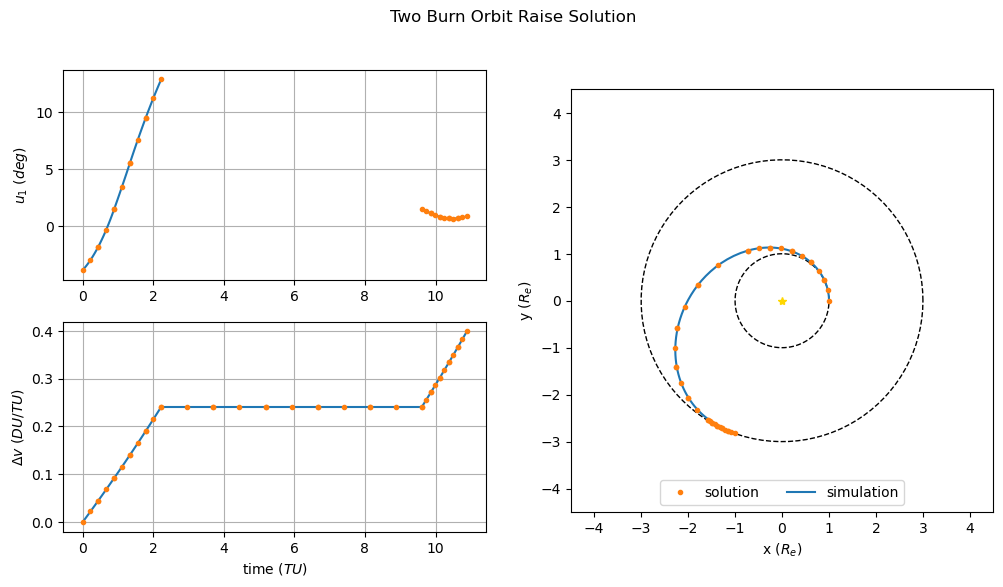

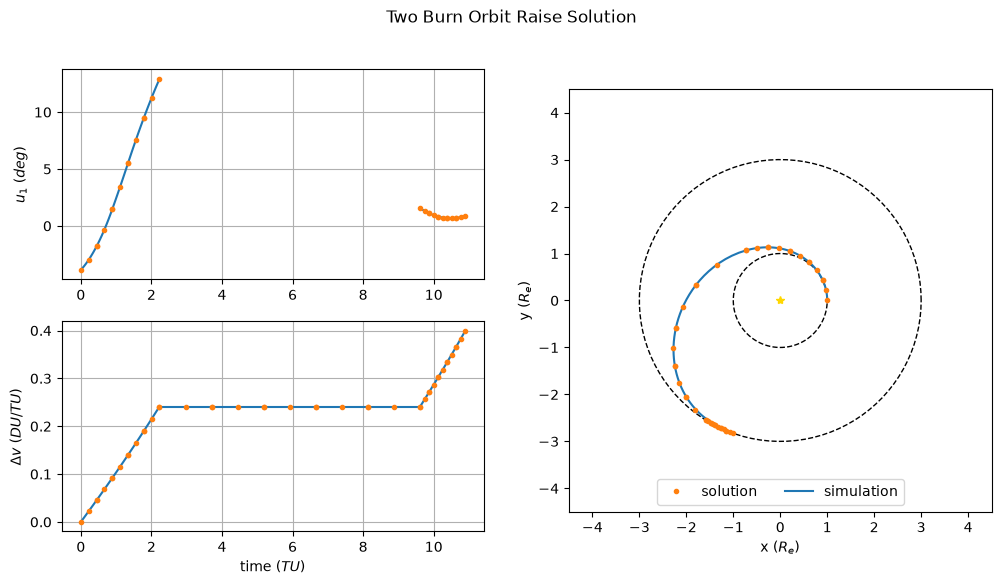

Plotting the results#

The following code cell reads the resulting state, time, and control histories from the solution and simulation record files and plots them. It is collapsed by default but can be viewed by expanding it with the button to the right.

Show code cell source

Hide code cell source

sol = om.CaseReader(p.get_outputs_dir() / 'dymos_solution.db').get_case('final')
sim = om.CaseReader(traj.sim_prob.get_outputs_dir() / 'dymos_simulation.db').get_case('final')

fig = plt.figure(figsize=(12, 6))
fig.suptitle('Two Burn Orbit Raise Solution')
ax_u1 = plt.subplot2grid((2, 2), (0, 0))
ax_deltav = plt.subplot2grid((2, 2), (1, 0))
ax_xy = plt.subplot2grid((2, 2), (0, 1), rowspan=2)

span = np.linspace(0, 2 * np.pi, 100)
ax_xy.plot(np.cos(span), np.sin(span), 'k--', lw=1)
ax_xy.plot(3 * np.cos(span), 3 * np.sin(span), 'k--', lw=1)
ax_xy.set_xlim(-4.5, 4.5)
ax_xy.set_ylim(-4.5, 4.5)

ax_xy.set_xlabel('x ($R_e$)')
ax_xy.set_ylabel('y ($R_e$)')
ax_xy.set_aspect('equal')
ax_xy.plot([0], [0], '*', color='gold')

ax_u1.set_ylabel('$u_1$ ($deg$)')
ax_u1.grid(True)

ax_deltav.set_xlabel('time ($TU$)')
ax_deltav.set_ylabel('${\Delta}v$ ($DU/TU$)')
ax_deltav.grid(True)

t_sol = dict((phs, sol.get_val(f'traj.{phs}.timeseries.time'.format(phs)))
             for phs in ['burn1', 'coast', 'burn2'])
x_sol = dict((phs, sol.get_val(f'traj.{phs}.timeseries.pos_x'.format(phs)))
             for phs in ['burn1', 'coast', 'burn2'])
y_sol = dict((phs, sol.get_val(f'traj.{phs}.timeseries.pos_y'.format(phs)))
             for phs in ['burn1', 'coast', 'burn2'])
dv_sol = dict((phs, sol.get_val(f'traj.{phs}.timeseries.deltav'.format(phs)))
              for phs in ['burn1', 'coast', 'burn2'])
u1_sol = dict((phs, sol.get_val(f'traj.{phs}.timeseries.u1'.format(phs), units='deg'))
              for phs in ['burn1', 'burn2'])

t_exp = dict((phs, sim.get_val(f'traj.{phs}.timeseries.time'))
             for phs in ['burn1', 'coast', 'burn2'])
x_exp = dict((phs, sim.get_val(f'traj.{phs}.timeseries.pos_x'))
             for phs in ['burn1', 'coast', 'burn2'])
y_exp = dict((phs, sim.get_val(f'traj.{phs}.timeseries.pos_y'))
             for phs in ['burn1', 'coast', 'burn2'])
dv_exp = dict((phs, sim.get_val(f'traj.{phs}.timeseries.deltav'))
              for phs in ['burn1', 'coast', 'burn2'])
u1_exp = dict((phs, sim.get_val(f'traj.{phs}.timeseries.u1',
                                units='deg'))
              for phs in ['burn1', 'burn2'])

for phs in ['burn1', 'coast', 'burn2']:
    try:
        ax_u1.plot(t_exp[phs], u1_exp[phs], '-', marker=None, color='C0')
        ax_u1.plot(t_sol[phs], u1_sol[phs], 'o', mfc='C1', mec='C1', ms=3)
    except KeyError:
        pass

    ax_deltav.plot(t_exp[phs], dv_exp[phs], '-', marker=None, color='C0')
    ax_deltav.plot(t_sol[phs], dv_sol[phs], 'o', mfc='C1', mec='C1', ms=3)

    exp_plt, = ax_xy.plot(x_exp[phs], y_exp[phs], '-', marker=None, color='C0', label='explicit')
    imp_plt, = ax_xy.plot(x_sol[phs], y_sol[phs], 'o', mfc='C1', mec='C1', ms=3, label='implicit')


ax_xy.legend(handles=[imp_plt, exp_plt], labels=['solution', 'simulation'], loc='lower center', ncol=2)

plt.show()

<>:25: SyntaxWarning: invalid escape sequence '\D'
<>:25: SyntaxWarning: invalid escape sequence '\D'
/tmp/ipykernel_3854/2573435747.py:25: SyntaxWarning: invalid escape sequence '\D'
  ax_deltav.set_ylabel('${\Delta}v$ ($DU/TU$)')

../../_images/fb76752b2b36c1e1d10d42800cf5e379324035b1485a6e67a4d75a79227e880b.png

References#

[EC91]

Paul J Enright and Brace A Conway. Optimal finite-thrust spacecraft trajectories using collocation and nonlinear programming. Journal of Guidance, Control, and Dynamics, 14(5):981–985, 1991.

Two-Burn Orbit Raise

Contents

Two-Burn Orbit Raise#

Building and running the problem#

Plotting the results#

References#
