The Brachistochrone with Externally-Sourced Controls#

Things you’ll learn through this example

  • How to provide trajectory control values from an external source.

This example is the same as the other brachistochrone example with one exception: the control values come from an external source upstream of the trajectory.

The following script fully defines the brachistochrone problem with Dymos and solves it. A new IndepVarComp is added before the trajectory. The transcription used in the relevant phase is defined first so that we can obtain the number of control input nodes. The IndepVarComp then provides the control \(\theta\) at the correct number of nodes, and sends them to the trajectory. Since the control values are no longer managed by Dymos, they are added as design variables using the OpenMDAO add_design_var method.

Hide code cell outputs
import numpy as np
import openmdao.api as om


class BrachistochroneODE(om.ExplicitComponent):

    def initialize(self):
        self.options.declare('num_nodes', types=int)
        self.options.declare('g', default=9.80665, desc='gravitational acceleration in m/s**2')

    def setup(self):
        nn = self.options['num_nodes']

        # Inputs
        self.add_input('v', val=np.zeros(nn), desc='velocity', units='m/s')

        self.add_input('theta', val=np.ones(nn), desc='angle of wire', units='rad')

        self.add_output('xdot', val=np.zeros(nn), desc='velocity component in x', units='m/s',
                        tags=['dymos.state_rate_source:x', 'dymos.state_units:m'])

        self.add_output('ydot', val=np.zeros(nn), desc='velocity component in y', units='m/s',
                        tags=['dymos.state_rate_source:y', 'dymos.state_units:m'])

        self.add_output('vdot', val=np.zeros(nn), desc='acceleration magnitude', units='m/s**2',
                        tags=['dymos.state_rate_source:v', 'dymos.state_units:m/s'])

        self.add_output('check', val=np.zeros(nn), desc='check solution: v/sin(theta) = constant',
                        units='m/s')

        # Setup partials
        ar = np.arange(self.options['num_nodes'], dtype=int)

        self.declare_partials(of='vdot', wrt='theta', rows=ar, cols=ar)

        self.declare_partials(of='xdot', wrt='v', rows=ar, cols=ar)
        self.declare_partials(of='xdot', wrt='theta', rows=ar, cols=ar)

        self.declare_partials(of='ydot', wrt='v', rows=ar, cols=ar)
        self.declare_partials(of='ydot', wrt='theta', rows=ar, cols=ar)

        self.declare_partials(of='check', wrt='v', rows=ar, cols=ar)
        self.declare_partials(of='check', wrt='theta', rows=ar, cols=ar)

    def compute(self, inputs, outputs):
        theta = inputs['theta']
        cos_theta = np.cos(theta)
        sin_theta = np.sin(theta)
        g = self.options['g']
        v = inputs['v']

        outputs['vdot'] = g * cos_theta
        outputs['xdot'] = v * sin_theta
        outputs['ydot'] = -v * cos_theta
        outputs['check'] = v / sin_theta

    def compute_partials(self, inputs, partials):
        theta = inputs['theta']
        cos_theta = np.cos(theta)
        sin_theta = np.sin(theta)
        g = self.options['g']
        v = inputs['v']

        partials['vdot', 'theta'] = -g * sin_theta

        partials['xdot', 'v'] = sin_theta
        partials['xdot', 'theta'] = v * cos_theta

        partials['ydot', 'v'] = -cos_theta
        partials['ydot', 'theta'] = v * sin_theta

        partials['check', 'v'] = 1 / sin_theta
        partials['check', 'theta'] = -v * cos_theta / sin_theta**2
import numpy as np
import openmdao.api as om
import dymos as dm

import matplotlib.pyplot as plt
from dymos.examples.brachistochrone.brachistochrone_ode import BrachistochroneODE

#
# Define the OpenMDAO problem
#
p = om.Problem(model=om.Group())

# Instantiate the transcription so we can get the number of nodes from it while
# building the problem.
tx = dm.GaussLobatto(num_segments=10, order=3)

# Add an indep var comp to provide the external control values
ivc = p.model.add_subsystem('control_ivc', om.IndepVarComp(), promotes_outputs=['*'])

# Add the output to provide the values of theta at the control input nodes of the transcription.
ivc.add_output('theta', shape=(tx.grid_data.subset_num_nodes['control_input']), units='rad')

# Add this external control as a design variable
p.model.add_design_var('theta', units='rad', lower=1.0E-5, upper=np.pi)
# Connect this to controls:theta in the appropriate phase.
# connect calls are cached, so we can do this before we actually add the trajectory to the problem.
p.model.connect('theta', 'traj.phase0.controls:theta')

#
# Define a Trajectory object
#
traj = dm.Trajectory()

p.model.add_subsystem('traj', subsys=traj)

#
# Define a Dymos Phase object with GaussLobatto Transcription
#
phase = dm.Phase(ode_class=BrachistochroneODE,
                 transcription=tx)

traj.add_phase(name='phase0', phase=phase)

#
# Set the time options
# Time has no targets in our ODE.
# We fix the initial time so that the it is not a design variable in the optimization.
# The duration of the phase is allowed to be optimized, but is bounded on [0.5, 10].
#
phase.set_time_options(fix_initial=True, duration_bounds=(0.5, 10.0), units='s')

#
# Set the time options
# Initial values of positions and velocity are all fixed.
# The final value of position are fixed, but the final velocity is a free variable.
# The equations of motion are not functions of position, so 'x' and 'y' have no targets.
# The rate source points to the output in the ODE which provides the time derivative of the
# given state.
phase.add_state('x', fix_initial=True, fix_final=True, units='m', rate_source='xdot')
phase.add_state('y', fix_initial=True, fix_final=True, units='m', rate_source='ydot')
phase.add_state('v', fix_initial=True, fix_final=False, units='m/s',
                rate_source='vdot', targets=['v'])

# Define theta as a control.
# Use opt=False to allow it to be connected to an external source.
# Arguments lower and upper are no longer valid for an input control.
phase.add_control(name='theta', targets=['theta'], opt=False)

# Minimize final time.
phase.add_objective('time', loc='final')

# Set the driver.
p.driver = om.ScipyOptimizeDriver()

# Allow OpenMDAO to automatically determine our sparsity pattern.
# Doing so can significant speed up the execution of Dymos.
p.driver.declare_coloring()

# Setup the problem
p.setup(check=True)

# Now that the OpenMDAO problem is setup, we can set the values of the states and controls.
p.set_val('traj.phase0.states:x', phase.interp('x', [0, 10]), units='m')

p.set_val('traj.phase0.states:y', phase.interp('y', [10, 5]), units='m')

p.set_val('traj.phase0.states:v', phase.interp('v', [0, 5]), units='m/s')

p.set_val('traj.phase0.controls:theta', phase.interp('theta', [90, 90]), units='deg')

# Run the driver to solve the problem
p.run_driver()

# Test the results
print(p.get_val('traj.phase0.timeseries.time')[-1])

# Check the validity of our results by using scipy.integrate.solve_ivp to
# integrate the solution.
sim_out = traj.simulate()

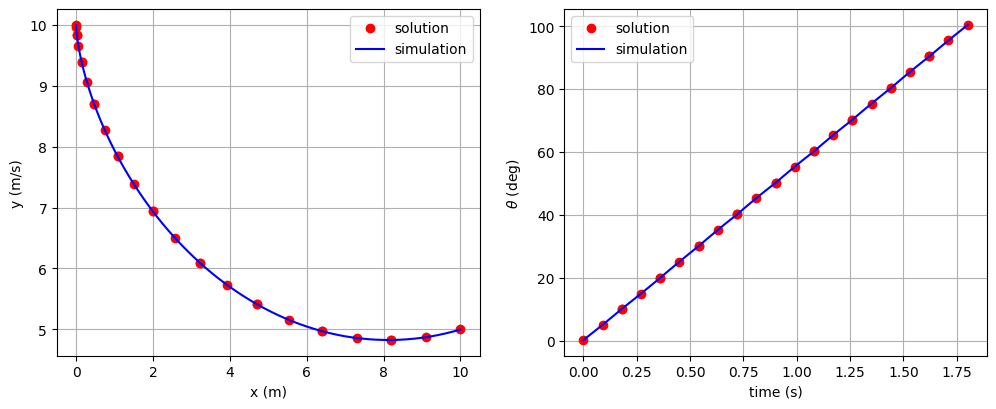

# Plot the results
fig, axes = plt.subplots(nrows=1, ncols=2, figsize=(12, 4.5))

axes[0].plot(p.get_val('traj.phase0.timeseries.x'),
             p.get_val('traj.phase0.timeseries.y'),
             'ro', label='solution')

axes[0].plot(sim_out.get_val('traj.phase0.timeseries.x'),
             sim_out.get_val('traj.phase0.timeseries.y'),
             'b-', label='simulation')

axes[0].set_xlabel('x (m)')
axes[0].set_ylabel('y (m/s)')
axes[0].legend()
axes[0].grid()

axes[1].plot(p.get_val('traj.phase0.timeseries.time'),
             p.get_val('traj.phase0.timeseries.theta', units='deg'),
             'ro', label='solution')

axes[1].plot(sim_out.get_val('traj.phase0.timeseries.time'),
             sim_out.get_val('traj.phase0.timeseries.theta', units='deg'),
             'b-', label='simulation')

axes[1].set_xlabel('time (s)')
axes[1].set_ylabel(r'$\theta$ (deg)')
axes[1].legend()
axes[1].grid()

plt.show()
--- Constraint Report [traj] ---
    --- phase0 ---
        None

INFO: checking out_of_order
INFO: checking system
INFO: checking solvers
INFO: checking dup_inputs
INFO: checking missing_recorders
WARNING: The Problem has no recorder of any kind attached
INFO: checking unserializable_options
INFO: checking comp_has_no_outputs
INFO: checking auto_ivc_warnings
Full total jacobian for problem 'problem' was computed 3 times, taking 0.06847308899995141 seconds.
Total jacobian shape: (31, 50)


Jacobian shape: (31, 50)  (13.81% nonzero)
FWD solves: 1   REV solves: 6
Total colors vs. total size: 7 vs 31  (77.42% improvement)

Sparsity computed using tolerance: 1e-25
Time to compute sparsity:   0.0685 sec
Time to compute coloring:   0.0196 sec
Memory to compute coloring:   0.1250 MB
Coloring created on: 2024-05-22 13:38:32
/usr/share/miniconda/envs/test/lib/python3.11/site-packages/scipy/optimize/_slsqp_py.py:437: RuntimeWarning: Values in x were outside bounds during a minimize step, clipping to bounds
  fx = wrapped_fun(x)
/usr/share/miniconda/envs/test/lib/python3.11/site-packages/scipy/optimize/_slsqp_py.py:441: RuntimeWarning: Values in x were outside bounds during a minimize step, clipping to bounds
  g = append(wrapped_grad(x), 0.0)
Optimization terminated successfully    (Exit mode 0)
            Current function value: 1.801604709284792
            Iterations: 46
            Function evaluations: 55
            Gradient evaluations: 46
Optimization Complete
-----------------------------------
[1.80160471]

Simulating trajectory traj
Done simulating trajectory traj
/usr/share/miniconda/envs/test/lib/python3.11/site-packages/openmdao/core/group.py:1098: DerivativesWarning:Constraints or objectives [ode_eval.control_interp.control_rates:theta_rate2] cannot be impacted by the design variables of the problem because no partials were defined for them in their parent component(s).

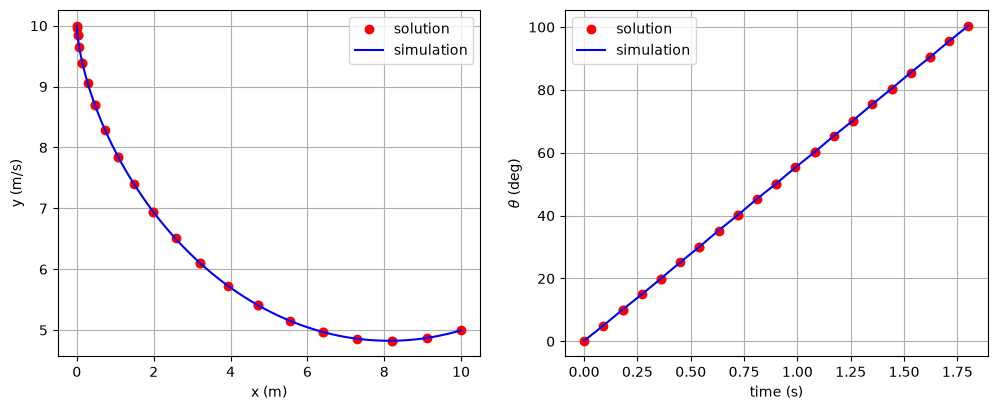

../../_images/1b1d5d2a7e14bfd1079f291473e50e32a5380e56b4fd4a5bcdee04ffc3e417d2.png
